LEESON | SKU:
EMN-018734
HG714, Leeson, 3/4 Hp, 1800 RPM, 115-230 Volts, Frame:48Y, Drip Proof,
Regular price
$536.67
Unit price
/
Unavailable
HG714, Leeson, 3/4 Hp, 1800 RPM, 115-230 Volts, Frame:48Y, Drip Proof, is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
HG714, Leeson, 3/4 Hp, 1800 RPM, 115-230 Volts, Frame:48Y, Drip Proof,
Regular price
$536.67
Unit price
/
Unavailable
Description
Description
HG714, 5KH37PNA479X, Leeson

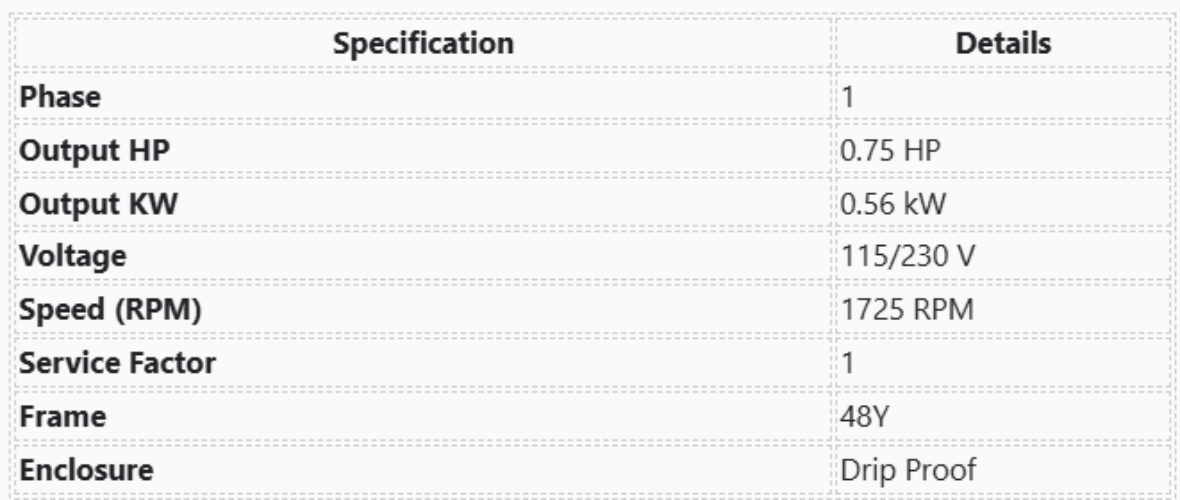

| Specification | Details |
|---|---|
| Phase | 1 |
| Output HP | 0.75 HP |
| Output KW | 0.56 kW |
| Voltage | 115/230 V |
| Speed (RPM) | 1725 RPM |
| Service Factor | 1 |
| Frame | 48Y |
| Enclosure | Drip Proof |

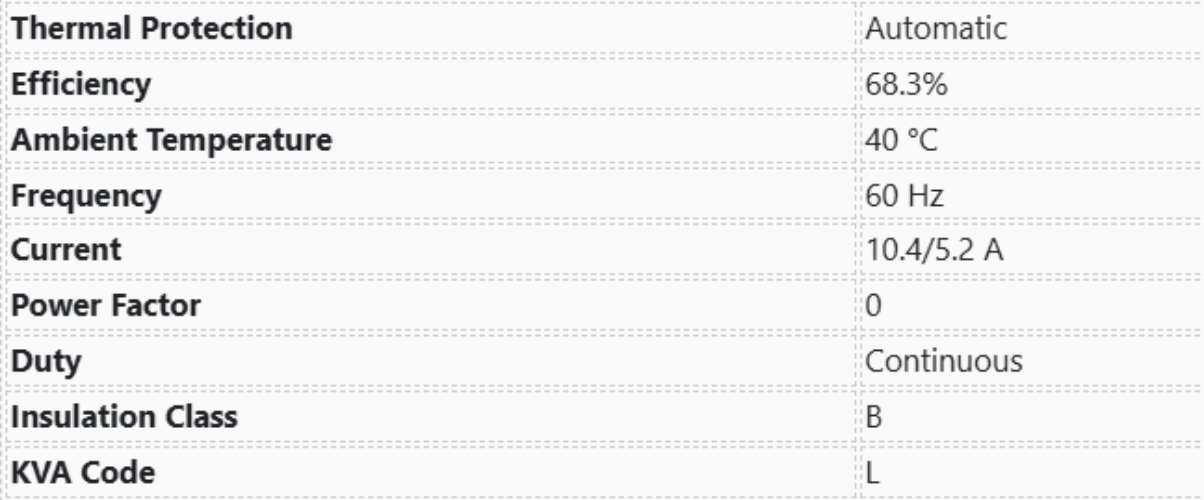

| Thermal Protection | Automatic |
| Efficiency | 68.3% |
| Ambient Temperature | 40 °C |
| Frequency | 60 Hz |
| Current | 10.4/5.2 A |
| Power Factor | 0 |
| Duty | Continuous |
| Insulation Class | B |
| KVA Code | L |

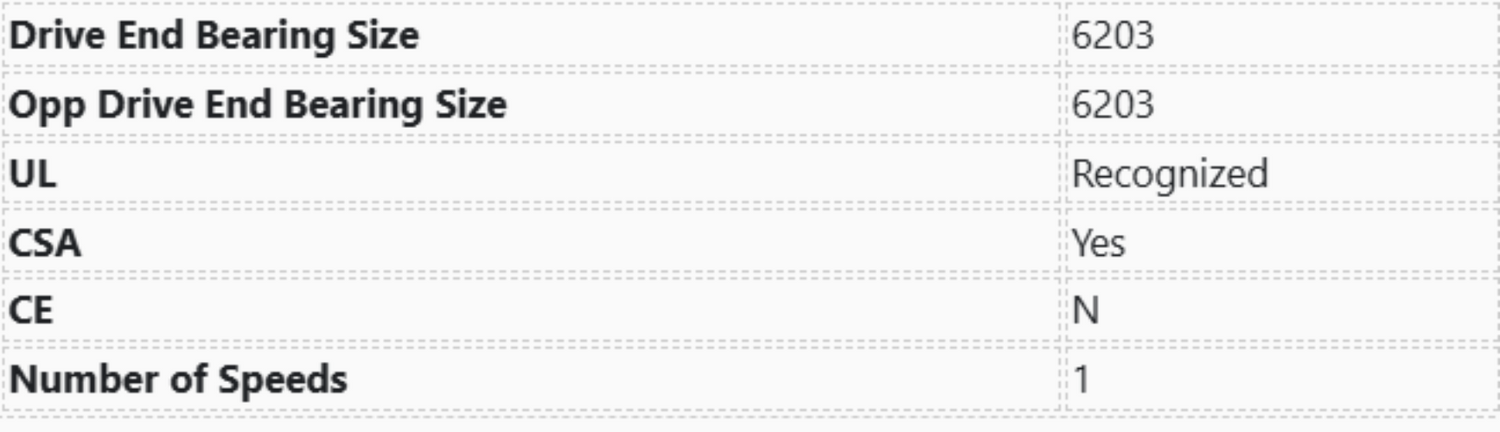

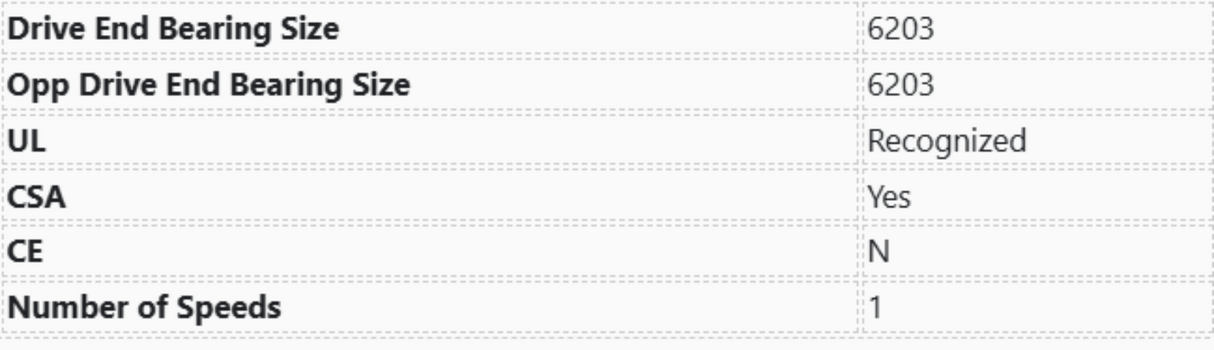

| Drive End Bearing Size | 6203 |
| Opp Drive End Bearing Size | 6203 |
| UL | Recognized |
| CSA | Yes |
| CE | N |
| Number of Speeds | 1 |
