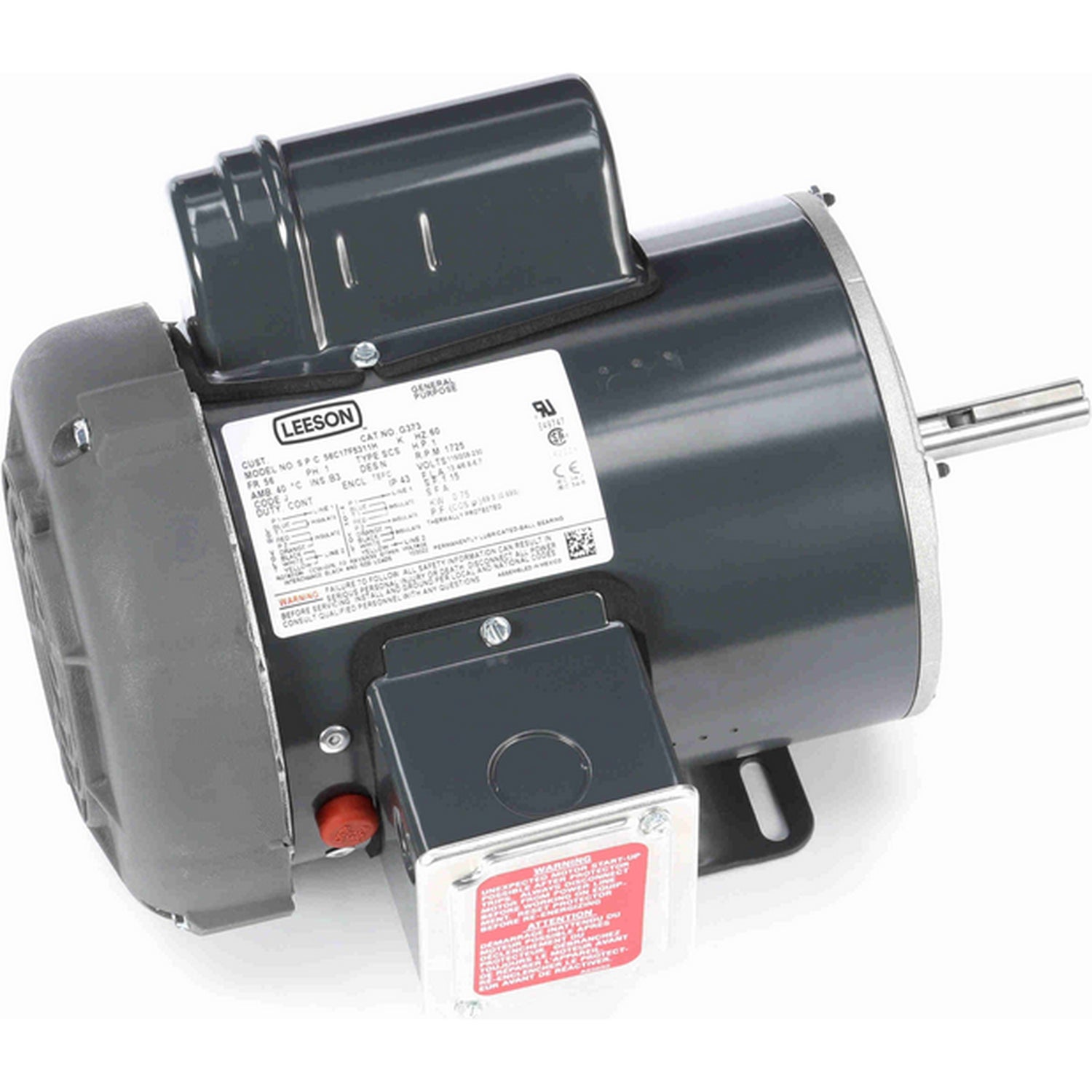

G373, 1 Hp, 1800 RPM, 115/208‑230 V, 1 Ph, 60 Hz, TEFC, Frame 56, 056C17F5311

This definite-purpose single-phase AC motor is engineered for pressure washer applications, delivering 1 Hp in a compact 56‑frame design with totally enclosed fan-cooled construction and capacitor start induction run operation.

KEY FEATURES

• Model: 056C17F5311

• Product Type: Definite Purpose Motor

• Horsepower: 1 Hp (0.75 kW)

• Voltage: 115/208‑230 V @ 60 Hz

• Speed: 1725 RPM @ 60 Hz

• Frame: 56

• Enclosure: TEFC (Totally Enclosed Fan Cooled)

• Service Factor: 1.15

• Efficiency: 72 %

• Power Factor: 69.5 %

• Current: 13.4 A / 6.8‑6.7 A

• Duty: Continuous

• Insulation Class: B

• Thermal Protection: Manual

• Design Code: N – KVA Code J

• Mounting: Rigid Base

• Shaft: NEMA 56 – 0.625" Diameter

• Bearings: Ball Bearings (6203 DE & 6203 ODE)

• Frame Material: Rolled Steel

• Rotation: Selective Counterclockwise

• Number of Speeds: 1

• IP Code: IP43

• Certifications: UL Recognized, CSA, CE

• Ambient Rating: 40 °C
