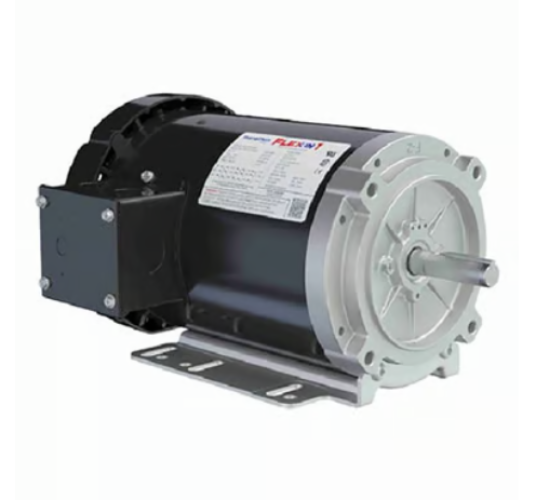

FX32BK002, General Purpose Motor, 1.50Hp, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 3600 & 3000 RPM, 56HC Frame, TEFC, 056T34F15671

FX32BK002, General Purpose Motor, 1.50Hp, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 3600 & 3000 RPM, 56HC Frame, TEFC, 056T34F15671

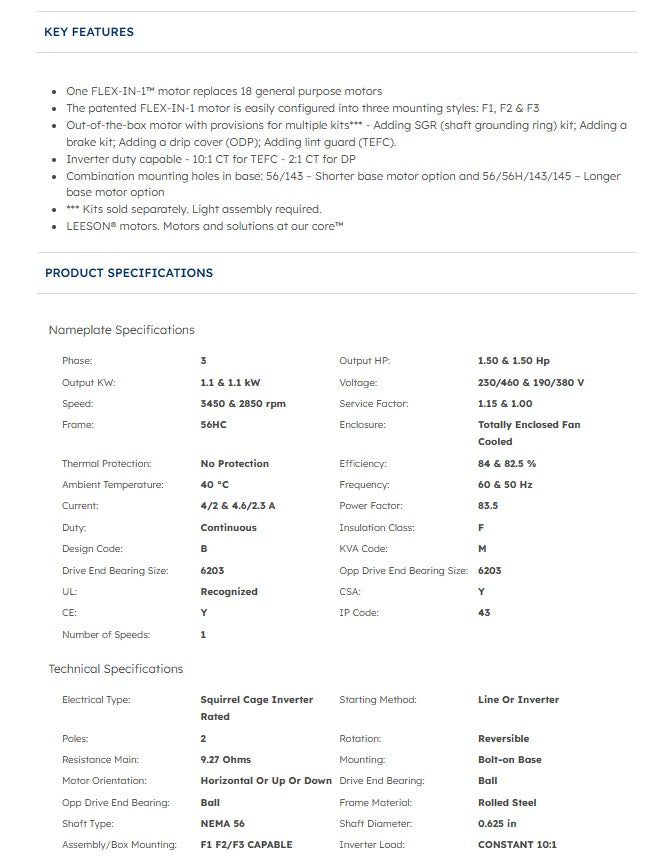

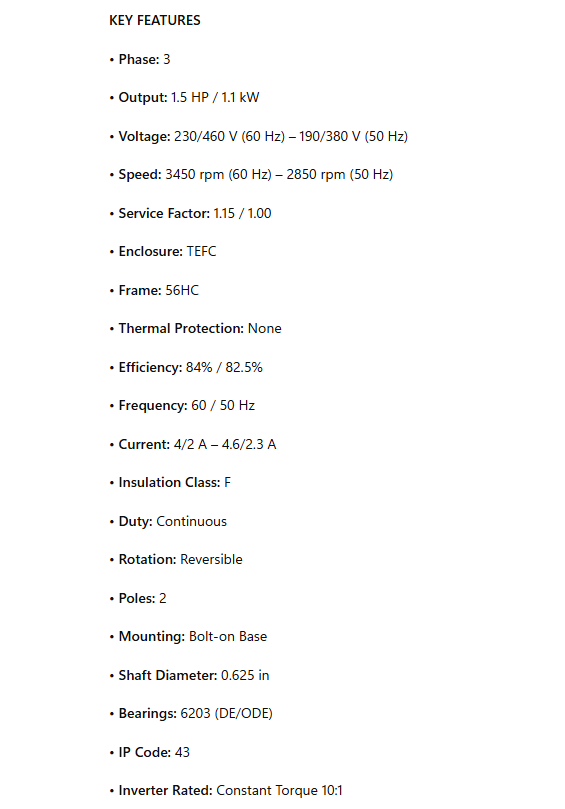

KEY FEATURES

• Phase: 3

• Output: 1.5 HP / 1.1 kW

• Voltage: 230/460 V (60 Hz) – 190/380 V (50 Hz)

• Speed: 3450 rpm (60 Hz) – 2850 rpm (50 Hz)

• Service Factor: 1.15 / 1.00

• Enclosure: TEFC

• Frame: 56HC

• Thermal Protection: None

• Efficiency: 84% / 82.5%

• Frequency: 60 / 50 Hz

• Current: 4/2 A – 4.6/2.3 A

• Insulation Class: F

• Duty: Continuous

• Rotation: Reversible

• Poles: 2

• Mounting: Bolt-on Base

• Shaft Diameter: 0.625 in

• Bearings: 6203 (DE/ODE)

• IP Code: 43

• Inverter Rated: Constant Torque 10:1

CROSS REFERENCE

• D394

• D394A

• MQRP-152CH

• MQRP-152CW

• MQR-152C
