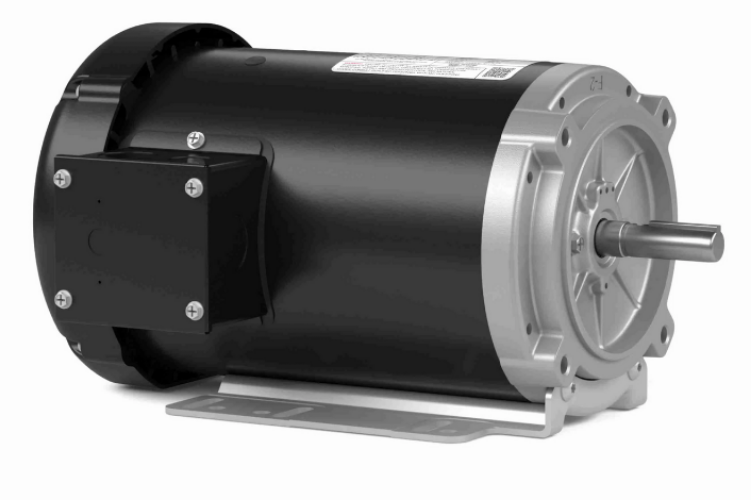

FX12BK004, General Purpose Motor, 0.50Hp, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 56C Frame, TEFC, 56T17F15948A

FX12BK004, General Purpose Motor, 0.50Hp, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 56C Frame, TEFC, 56T17F15948A

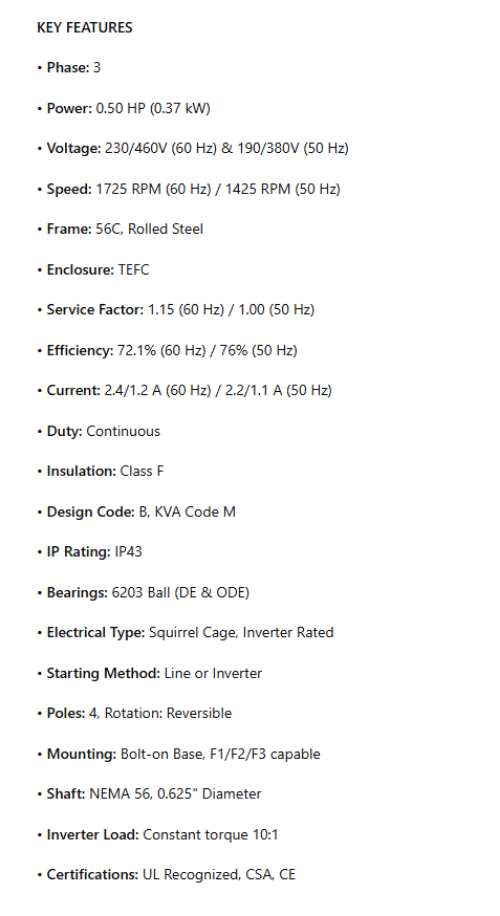

KEY FEATURES

• Phase: 3

• Power: 0.50 HP (0.37 kW)

• Voltage: 230/460V (60 Hz) & 190/380V (50 Hz)

• Speed: 1725 RPM (60 Hz) / 1425 RPM (50 Hz)

• Frame: 56C, Rolled Steel

• Enclosure: TEFC

• Service Factor: 1.15 (60 Hz) / 1.00 (50 Hz)

• Efficiency: 72.1% (60 Hz) / 76% (50 Hz)

• Current: 2.4/1.2 A (60 Hz) / 2.2/1.1 A (50 Hz)

• Duty: Continuous

• Insulation: Class F

• Design Code: B, KVA Code M

• IP Rating: IP43

• Bearings: 6203 Ball (DE & ODE)

• Electrical Type: Squirrel Cage, Inverter Rated

• Starting Method: Line or Inverter

• Poles: 4, Rotation: Reversible

• Mounting: Bolt-on Base, F1/F2/F3 capable

• Shaft: NEMA 56, 0.625" Diameter

• Inverter Load: Constant torque 10:1

• Certifications: UL Recognized, CSA, CE
