LEESON | SKU:
EMN-015724
174616.00, Vector Series 7.5Hp / 240V, 3PH(i/p) / 23.0A(o/p) Cont. / NEMA1
Regular price
$1,380.05
Unit price
/
Unavailable
174616.00, Vector Series 7.5Hp / 240V, 3PH(i/p) / 23.0A(o/p) Cont. / NEMA1 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
![174616.00, LEESON, 7.5 HP, 208-230V, 3 PH,NEMA 1, SM2, DRIVE FRÉQUENCY - FRÉQUENCY VARIABLE VECTOR DRIVE - LEESON - electric motors - [product_tags]- motor electric - moteur électrique - moteurs - drive - replacement - venmar - hvac - méchoui - capacitor - condensateur](http://www.emotornations.com/cdn/shop/products/174603.00_df759e60-a541-487c-87d5-707ca795bf2c.jpg?v=1756480709&width=88)
174616.00, Vector Series 7.5Hp / 240V, 3PH(i/p) / 23.0A(o/p) Cont. ...
Regular price
$1,380.05
Unit price
/
Unavailable
Description
Description
174616.00, Vector Series 7.5Hp / 240V, 3PH(i/p) / 23.0A(o/p) Cont. / NEMA1
Equivalent :Lenze ESV552N02TXB

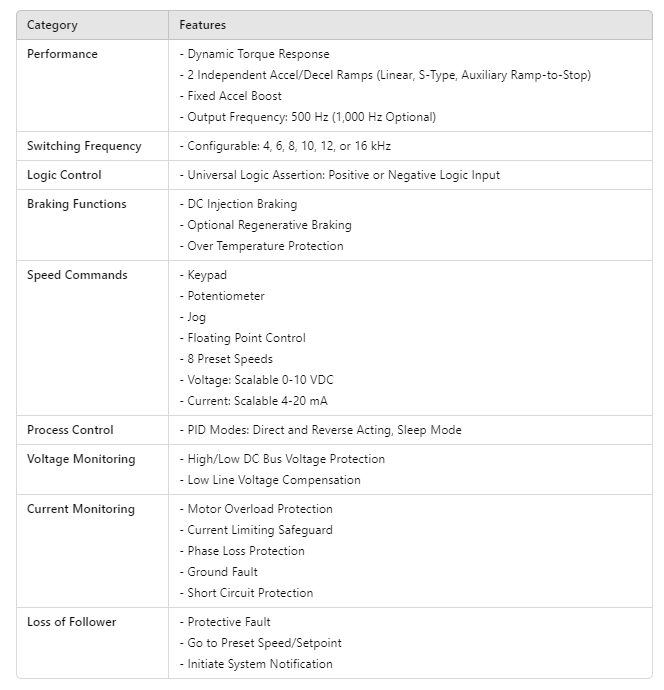

| Category | Features |
|---|---|
| Performance | - Dynamic Torque Response - 2 Independent Accel/Decel Ramps (Linear, S-Type, Auxiliary Ramp-to-Stop) - Fixed Accel Boost - Output Frequency: 500 Hz (1,000 Hz optional) |
| Switching Frequency | Configurable: 4, 6, 8, 10, 12, or 16 kHz |
| Logic Control | Universal Logic Assertion: Positive or Negative Logic Input |
| Braking Functions | - DC Injection Braking - Optional Regenerative Braking - Over Temperature Protection |
| Speed Commands | - Keypad - Potentiometer - Jog - Floating Point Control - 8 Preset Speeds - Voltage: Scalable 0-10 VDC - Current: Scalable 4-20 mA |
| Process Control | PID Modes: Direct and Reverse Acting, Sleep Mode |
| Voltage Monitoring | - High/Low DC Bus Voltage Protection - Low Line Voltage Compensation |
| Current Monitoring | - Motor Overload Protection - Current Limiting Safeguard - Phase Loss Protection - Ground Fault - Short Circuit Protection |
| Loss of Follower | - Protective Fault - Go to Preset Speed/Setpoint - Initiate System Notification |
