LEESON  |  SKU: EMN-019167

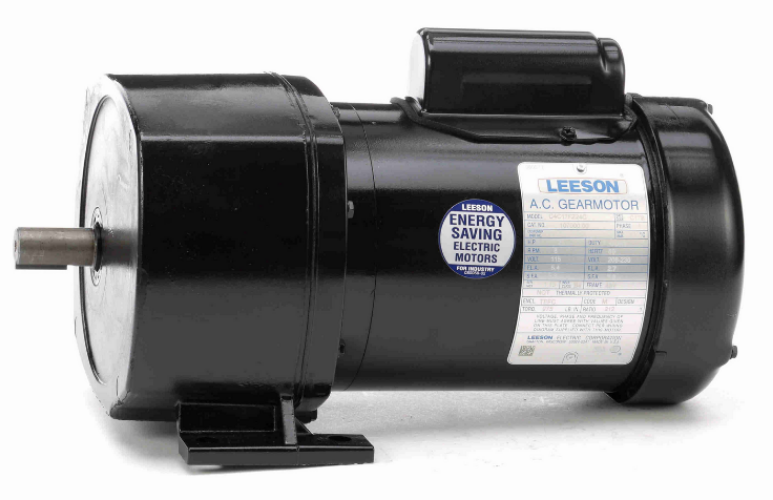

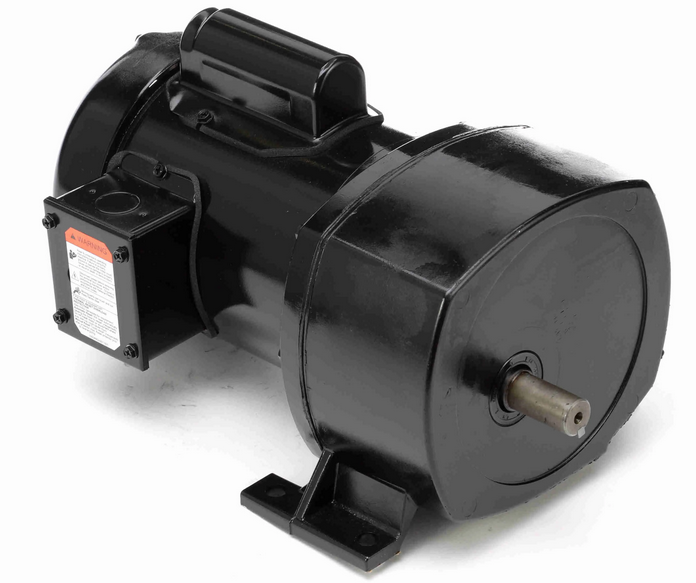

C4C17FZ24C, LEESON Parallel Shaft Gearmotor, 0.25Hp, 1 Ph, 60 Hz, 115/208-230 V, 8 RPM, 48Y Frame, TEFC - 107000.00

$1,495.87
shipping

Estimate shipping

Description

C4C17FZ24C, LEESON Parallel Shaft Gearmotor, 0.25Hp, 1 Ph, 60 Hz, 115/208-230 V, 8 RPM, 48Y Frame, TEFC - 107000.00

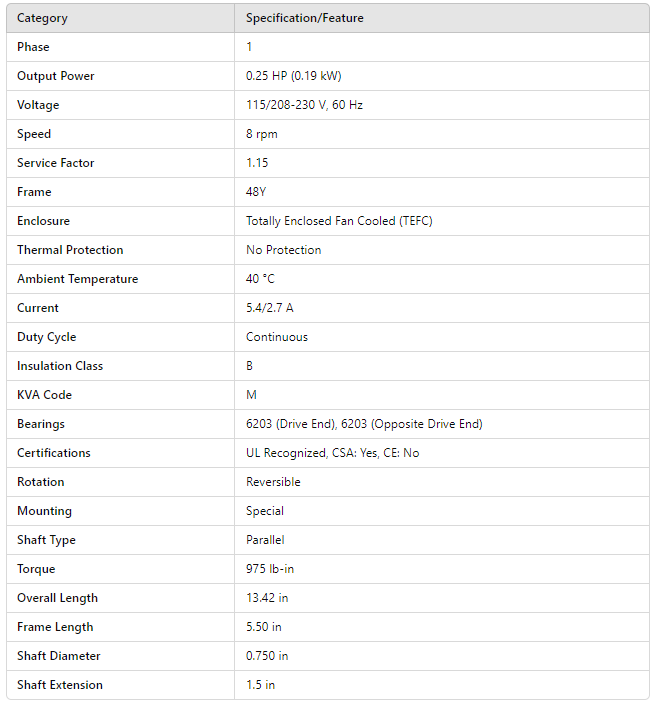

Category Specification/Feature
Phase 1
Output Power 0.25 HP (0.19 kW)
Voltage 115/208-230 V, 60 Hz
Speed 8 rpm
Service Factor 1.15
Frame 48Y
Enclosure Totally Enclosed Fan Cooled (TEFC)
Thermal Protection No Protection
Ambient Temperature 40 °C
Current 5.4/2.7 A
Duty Cycle Continuous
Insulation Class B
KVA Code M
Bearings 6203 (Drive End), 6203 (Opposite Drive End)
Certifications UL Recognized, CSA: Yes, CE: No
Rotation Reversible
Mounting Special
Shaft Type Parallel
Torque 975 lb-in
Overall Length 13.42 in
Frame Length 5.50 in
Shaft Diameter 0.750 in
Shaft Extension 1.5 in
