LEESON  |  SKU: EMN-017099

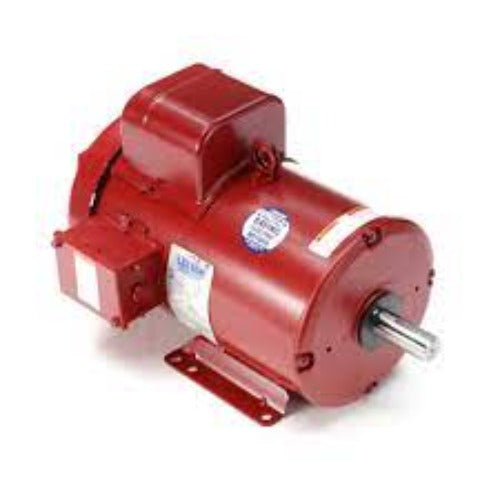

131543.00,Leeson, 5 Hp,1740 Rpm,230V, 1 Ph, Frame: 184T, P184K17FB16C,

$1,280.00
shipping

Estimate shipping

Description



  • 131543.00, Leeson, P184K17FB16C, Replace Z121A-M,L1410T, L1430T Baldor
Output HP: 5 Hp Output KW: 3.7 kW
Frequency: 60 Hz Voltage: 230 V
Current: 20.5 A Speed: 1740 rpm
Service Factor: 1.15 Phase: 1
Efficiency: 82.5 % Power Factor: 93
Duty: Continuous Insulation Class: F
Design Code: L KVA Code: H
Frame: 184T Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: Manual Ambient Temperature: 40 °C
Drive End Bearing Size: 6206 Opp Drive End Bearing Size: 6205
UL: Recognized CSA: Y
CE: N IP Code: 43
Number of Speeds: 1



Technical Specifications

Electrical Type: Capacitor Start Capacitor Run Starting Method: Across The Line
Poles: 4 Rotation: Selective Counterclockwise
Resistance Main: .47 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: T Overall Length: 17.46 in
Frame Length: 12.00 in Shaft Diameter: 1.125 in
Shaft Extension: 2.75 in Assembly/Box Mounting: F1 ONLY



  • Gasketed capacitor cases and conduit box covers
  • Meets or exceeds NEMA service factors
  • Double sealed ball bearings
  • Single phase designs
  • Condensate drains on general purpose Ag motors
  • Low temperature manual overload protected
  • High starting torque ratings

    •
