LEESON | SKU:
EMN-016256

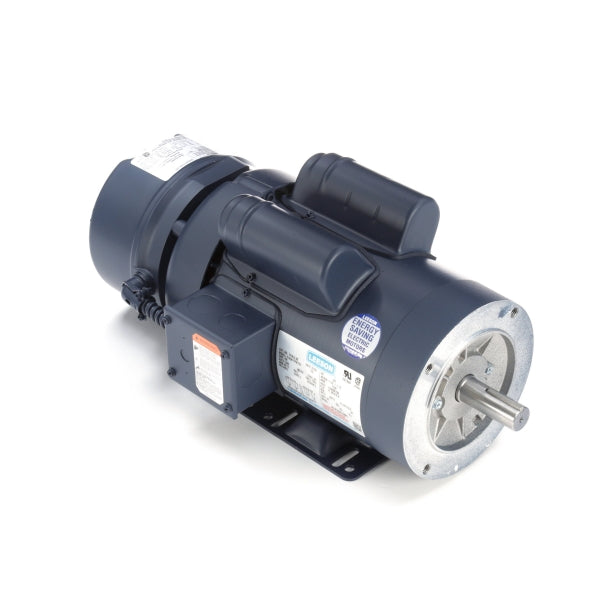

121815.00. Leeson, 1.5HP, 1750 RPM, 115/230V, C145K17FK17A, Brakemotor
Regular price
$2,087.16
Unit price
/
Unavailable
121815.00. Leeson, 1.5HP, 1750 RPM, 115/230V, C145K17FK17A, Brakemotor is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
![121815.00. Leeson, 1.5HP, 1750 RPM, 115/230V, C145K17FK17A, Brakemotor - BRAKE MOTOR - LEESON - electric motors - [product_tags]- motor electric - moteur électrique - moteurs - drive - replacement - venmar - hvac - méchoui - capacitor - condensateur](http://www.emotornations.com/cdn/shop/products/121815.00_LEESON.jpg?v=1756479473&width=112)
121815.00. Leeson, 1.5HP, 1750 RPM, 115/230V, C145K17FK17A, Brakemotor
Regular price
$2,087.16
Unit price
/
Unavailable
Description
Description
121815.00, Leeson, Model C145K17FK17A,
| 1.50 HP | Output KW : | 1.1 kW | |
| Frequency : | 60 Hz | Voltage : | 115/208-230 V |
| Current : | 17.2/8.8-8.6 A | Speed : | 1740 RPM |
| Service Factor : | 1 | Phase : | 1 |
| Efficiency : | 79 % | Duty : | Continuous |
| Insulation Class : | F | Design Code : | L |
| KVA Code : | J | Frame : | 145TC |
| Enclosure : | Totally Enclosed Fan Cooled | Overload Protector : | No |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6205 |
| Opp Drive End Bearing Size : | 6203 | UL : | Recognized |
| CSA : | Y | CE : | N |
| IP Code : | 43 |
Technical Specifications
| Electrical Type : | Capacitor Start Capacitor Run | Starting Method : | Across The Line |
| Poles : | 4 | Rotation : | Selective Counterclockwise |
| Mounting : | Rigid Base | Motor Orientation : | Horizontal |
| Drive End Bearing : | Ball | Opp Drive End Bearing : | Ball |
| Frame Material : | Rolled Steel | Shaft Type : | T |
| Overall Length : | 18.23 in | Frame Length : | 7.50 in |
| Shaft Diameter : | 0.875 in | Shaft Extension : | 2.25 in |
| Assembly/Box Mounting : | F1 ONLY | UPC : | 691720831625 |
| Weight : | 40.00 LB |
