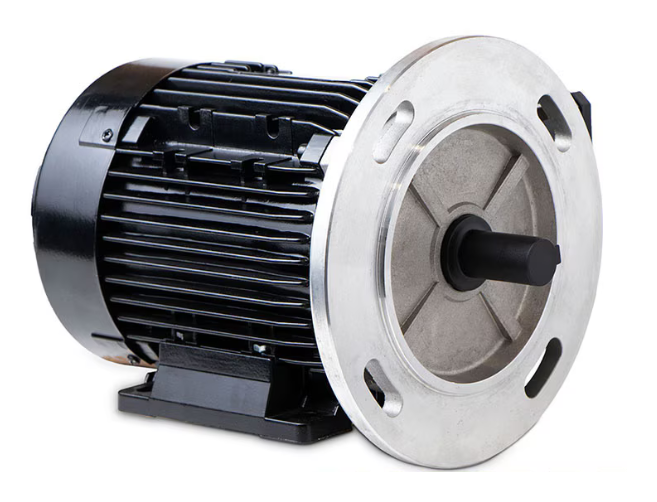

AMPH112MDA2-575-B35, 10Hp, 333/575V, 60 Hz, 3530 RPM, IP55, IC411, TEFC

AMPH112MDA2-575-B35, 10Hp, 333/575V, 60 Hz, 3530 RPM, IP55, IC411

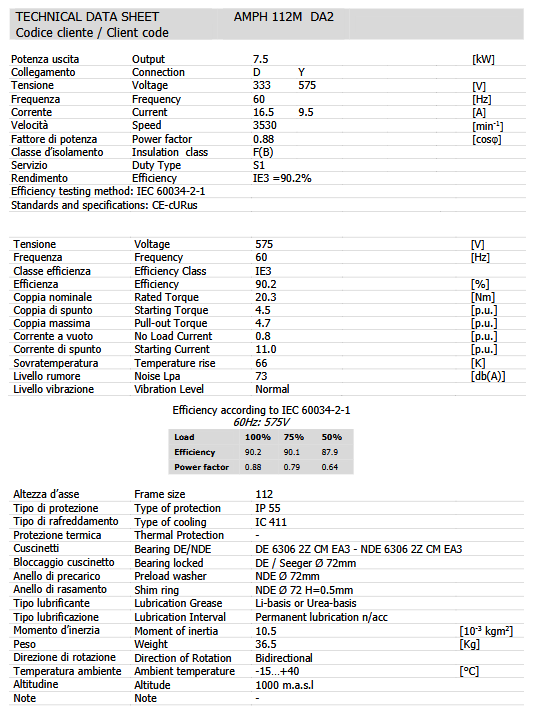

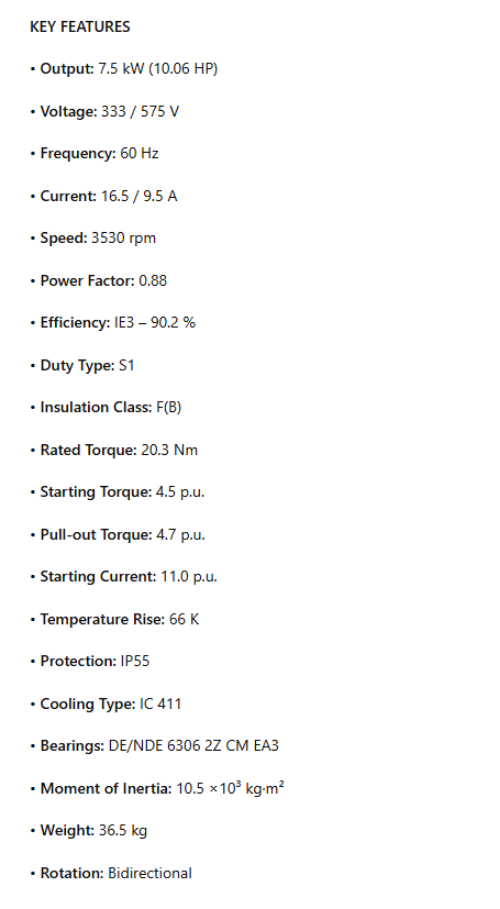

KEY FEATURES

• Output: 7.5 kW (10.06 HP)

• Voltage: 333 / 575 V

• Frequency: 60 Hz

• Current: 16.5 / 9.5 A

• Speed: 3530 rpm

• Power Factor: 0.88

• Efficiency: IE3 – 90.2 %

• Duty Type: S1

• Insulation Class: F(B)

• Rated Torque: 20.3 Nm

• Starting Torque: 4.5 p.u.

• Pull-out Torque: 4.7 p.u.

• Starting Current: 11.0 p.u.

• Temperature Rise: 66 K

• Protection: IP55

• Cooling Type: IC 411

• Bearings: DE/NDE 6306 2Z CM EA3

• Moment of Inertia: 10.5 ×10³ kg·m²

• Weight: 36.5 kg

• Rotation: Bidirectional

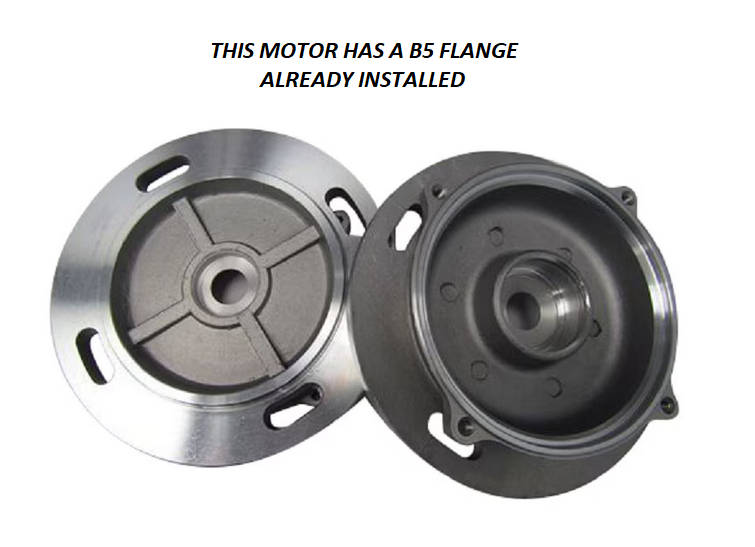

• B5 Flange Included: FL112B5 Lafert B5 Flange Kit
