AMPH112MDA2-460, 10Hp, 230/460V, 60 Hz, 3PH, 3600 RPM, 112MB3, TEFC

AMPH112MDA2-460, 10Hp, 230/460V, 60 Hz, 3PH, 3600 RPM, 112MB3, TEFC

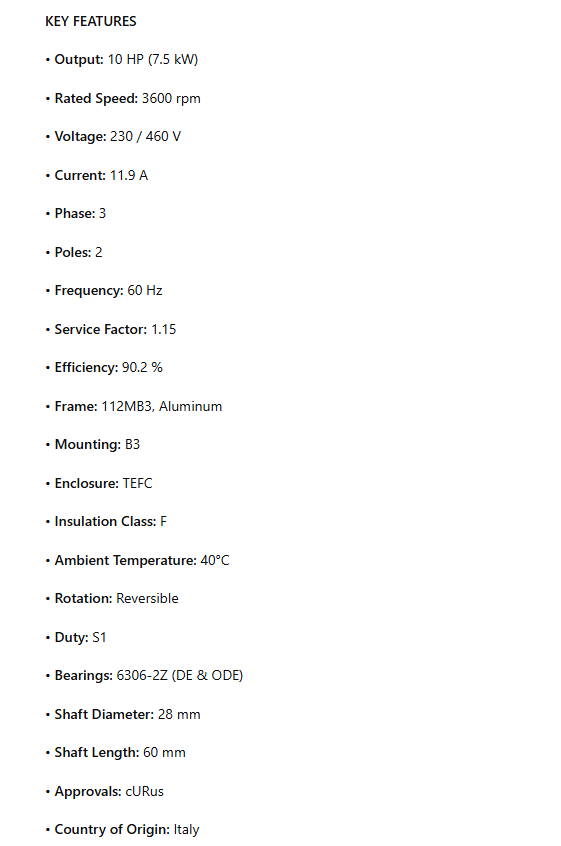

KEY FEATURES

• Output: 10 HP (7.5 kW)

• Rated Speed: 3600 rpm

• Voltage: 230 / 460 V

• Current: 11.9 A

• Phase: 3

• Poles: 2

• Frequency: 60 Hz

• Service Factor: 1.15

• Efficiency: 90.2 %

• Frame: 112MB3, Aluminum

• Mounting: B3

• Enclosure: TEFC

• Insulation Class: F

• Ambient Temperature: 40°C

• Rotation: Reversible

• Duty: S1

• Bearings: 6306-2Z (DE & ODE)

• Shaft Diameter: 28 mm

• Shaft Length: 60 mm

• Approvals: cURus

• Country of Origin: Italy
