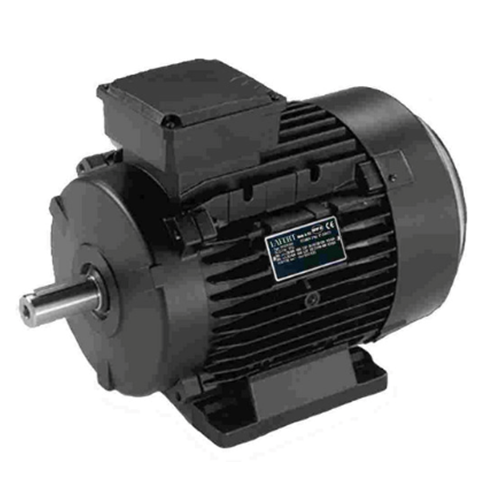

AM90LDA4-460-F, 3Hp, 1800 RPM, 230/460V, 3Ph, 60Hz, Frame 90L, TEFC, Class F, D-Flange

AM90LDA4-460-F, 3Hp, 1800 RPM, 230/460V, 3Ph, 60Hz, Frame 90L, TEFC, Class F, D-Flange

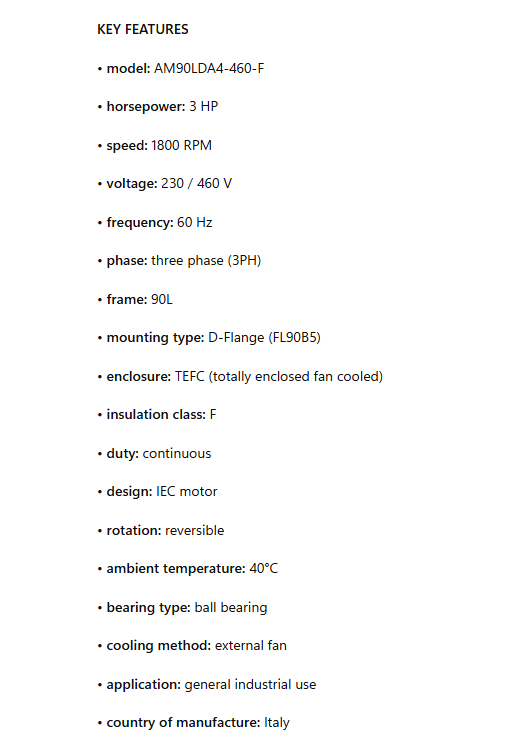

KEY FEATURES

• model: AM90LDA4-460-F

• horsepower: 3 HP

• speed: 1800 RPM

• voltage: 230 / 460 V

• frequency: 60 Hz

• phase: three phase (3PH)

• frame: 90L

• mounting type: D-Flange (FL90B5)

• enclosure: TEFC (totally enclosed fan cooled)

• insulation class: F

• duty: continuous

• design: IEC motor

• rotation: reversible

• ambient temperature: 40°C

• bearing type: ball bearing

• cooling method: external fan

• application: general industrial use

• country of manufacture: Italy
