KBVF-23, 9959, Drive, KB, AC, 0.5HP, 230V 1Ph In, 230V 3Ph Out,

KBVF-23D, 9958, KB Electronics, Drive, AC, 0.5HP, 240V, 115/230V 1Ph In, 240V 3Ph Out,

• HP 0.5
• INPUT VOLTAGE
• 115V, 230V OUTPUT VOLTAGE
• 230V INPUT
• PHASE 1
• ENCLOSURE Chassis

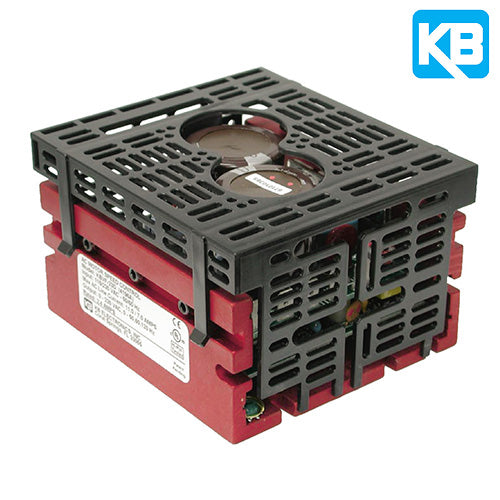

The KBVF-23D, adjustable frequency AC Drive provides control of standard, 1/2 horsepower, 3 Phase AC and PSC induction motors used for Machine or Variable Torque (HVAC) applications. Standard features include; Digital Programming, Adjustable RMS Current Limit, I2t prevents Motor Burnout, Slip Compensation with Auto-Tune & Boost provides excellent load regulation over a 30:1 speed range, Power Start delivers over 200% motor starting torque to ensure startup of high frictional loads. Other standard features include Run/Fault Relay Output Contacts, Electronic Inrush Current Limit (EICL) that eliminates harmful AC Line inrush current and a built-in dV/dT filter, that reduces harmful voltage spikes to the motor. Also provided are two diagnostic LEDs. The AC Drive is housed in a rugged U-frame chassis with an industry-standard mounting footprint. A finger-safe cover provides protection against accidental contact with electrical components. Dimensions approx. 4.3" x 3.9" x 2.5" Agency approvals: UL, CE, CSA, C-Tick Optional accessories include: SIVFR Signal Isolator, MSB Multi Speed Board, RFI Filters Class A ; B, DLM Download Module, Drive Linktm Programming Kit, Modbus Communications Kit, Dynamic Brake Module.
