KB ELECTRONIC  |  SKU: EMN-019341

9795, (KBVF-23D-GFCI) Hybrid AC Drive 1/2Hp 2.4A 115/230V 1PH Input 230V 3PH output IP20 Chassis W/ GFCI Software

$397.63
Shipping calculated at checkout.
shipping

Estimate shipping

Description

9795, (KBVF-23D-GFCI) Hybrid AC Drive 1/2Hp 2.4A 115/230V 1PH Input 230V 3PH output IP20 Chassis W/ GFCI Software

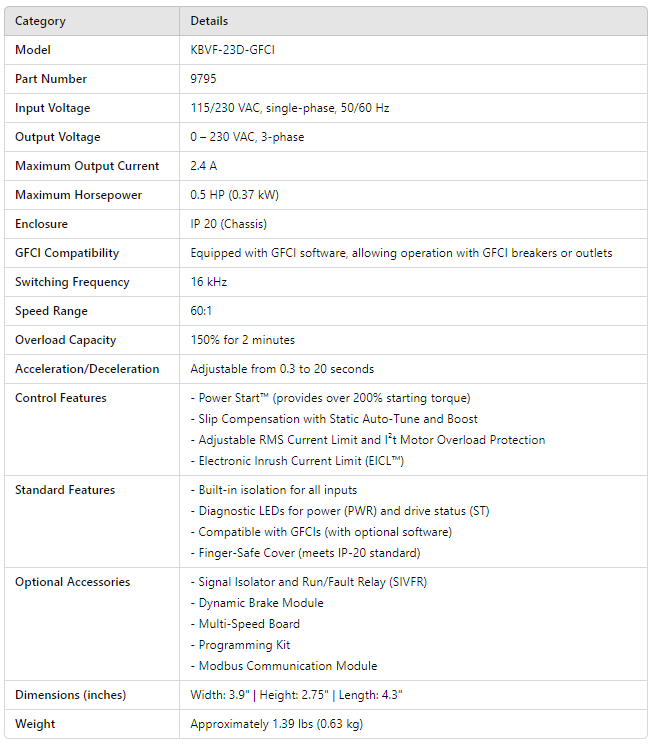

Category Details
Model KBVF-23D-GFCI
Part Number 9795
Input Voltage 115/230 VAC, single-phase, 50/60 Hz
Output Voltage 0 – 230 VAC, 3-phase
Maximum Output Current 2.4 A
Maximum Horsepower 0.5 HP (0.37 kW)
Enclosure IP 20 (Chassis)
GFCI Compatibility Equipped with GFCI software, allowing operation with GFCI breakers or outlets
Switching Frequency 16 kHz
Speed Range 60:1
Overload Capacity 150% for 2 minutes
Acceleration/Deceleration Adjustable from 0.3 to 20 seconds
Control Features - Power Start™ (provides over 200% starting torque)
- Slip Compensation with Static Auto-Tune and Boost
- Adjustable RMS Current Limit and I²t Motor Overload Protection
- Electronic Inrush Current Limit (EICL™)
Standard Features - Built-in isolation for all inputs
- Diagnostic LEDs for power (PWR) and drive status (ST)
- Compatible with GFCIs (with optional software)
- Finger-Safe Cover (meets IP-20 standard)
Optional Accessories - Signal Isolator and Run/Fault Relay (SIVFR)
- Dynamic Brake Module
- Multi-Speed Board
- Programming Kit
- Modbus Communication Module
Dimensions (inches) Width: 3.9" | Height: 2.75" | Length: 4.3"
Weight Approximately 1.39 lbs (0.63 kg)
