KB ELECTRONIC  |  SKU: EMN-019379

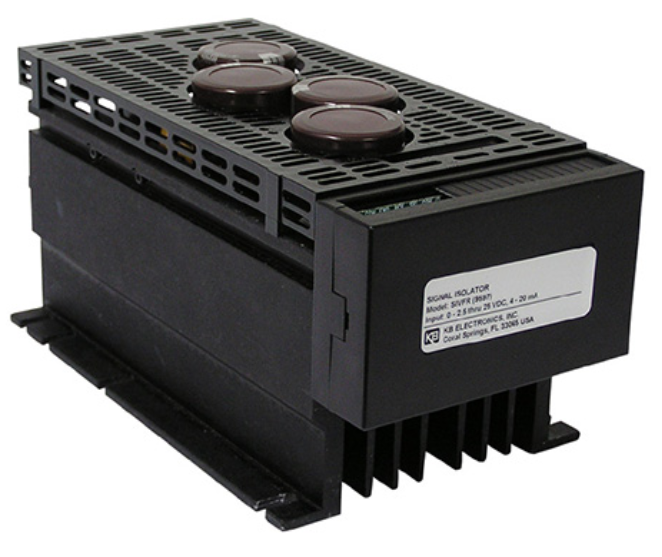

9645, (KBVF-42/SIVFR) Hybrid AC Drive 1Hp 2A 460V 3PH Input 460V 3PH Ouput IP20 Chassis W/ SIVFR Signal Input Isolation Run/Fault Output Relay

$855.82
Shipping calculated at checkout.
shipping

Estimate shipping

Description

9645, (KBVF-42/SIVFR) Hybrid AC Drive 1Hp 2A 460V 3PH Input 460V 3PH Ouput IP20 Chassis W/ SIVFR Signal Input Isolation Run/Fault Output Relay

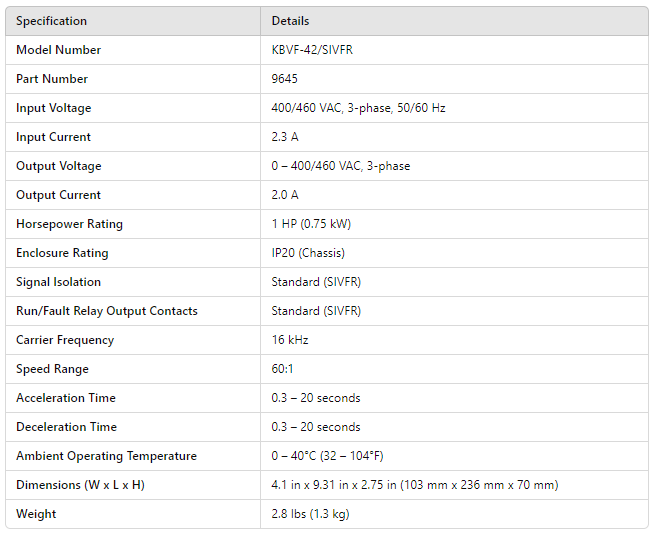

Specification Details
Model Number KBVF-42/SIVFR
Part Number 9645
Input Voltage 400/460 VAC, 3-phase, 50/60 Hz
Input Current 2.3 A
Output Voltage 0 – 400/460 VAC, 3-phase
Output Current 2.0 A
Horsepower Rating 1 HP (0.75 kW)
Enclosure Rating IP20 (Chassis)
Signal Isolation Standard (SIVFR)
Run/Fault Relay Output Contacts Standard (SIVFR)
Carrier Frequency 16 kHz
Speed Range 60:1
Acceleration Time 0.3 – 20 seconds
Deceleration Time 0.3 – 20 seconds
Ambient Operating Temperature 0 – 40°C (32 – 104°F)
Dimensions (W x L x H) 4.1 in x 9.31 in x 2.75 in (103 mm x 236 mm x 70 mm)
Weight 2.8 lbs (1.3 kg)
