KB ELECTRONIC  |  SKU: EMN-019362

9423, (KBIC-240DS) SCR DC Drive 1Hp 12A With Heat Sink 0.5Hp 6A Without Heat Sink 115/230VAC 1PH Input 90VDC Output Chassis

$259.53
Shipping calculated at checkout.
shipping

Estimate shipping

Description

9423, (KBIC-240DS) SCR DC Drive 1Hp 12A With Heat Sink 0.5Hp 6A Without Heat Sink 115/230VAC 1PH Input 90VDC Output Chassis

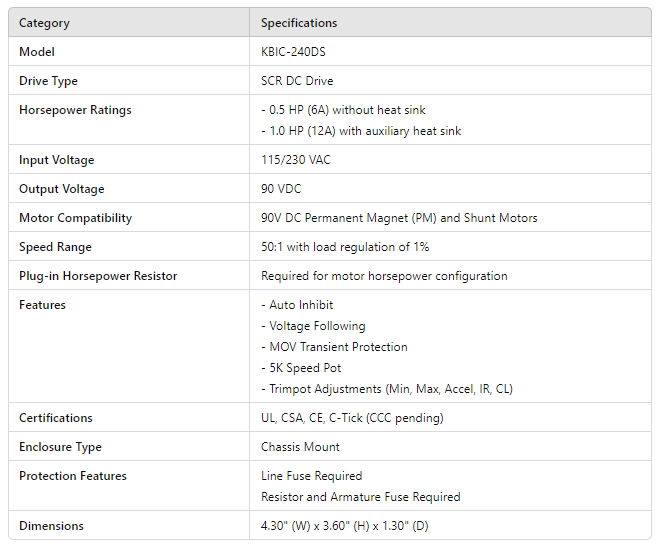

Category Specifications
Model KBIC-240DS
Drive Type SCR DC Drive
Horsepower Ratings - 0.5 HP (6A) without heat sink
- 1.0 HP (12A) with auxiliary heat sink
Input Voltage 115/230 VAC
Output Voltage 90 VDC
Motor Compatibility 90V DC Permanent Magnet (PM) and Shunt Motors
Speed Range 50:1 with load regulation of 1%
Plug-in Horsepower Resistor Required for motor horsepower configuration
Features - Auto Inhibit
- Voltage Following
- MOV Transient Protection
- 5K Speed Pot
- Trimpot Adjustments (Min, Max, Accel, IR, CL)
Certifications UL, CSA, CE, C-Tick (CCC pending)
Enclosure Type Chassis Mount
Protection Features Line Fuse Required
Resistor and Armature Fuse Required
Dimensions 4.30" (W) x 3.60" (H) x 1.30" (D)
