KB ELECTRONIC  |  SKU: EMN-019360

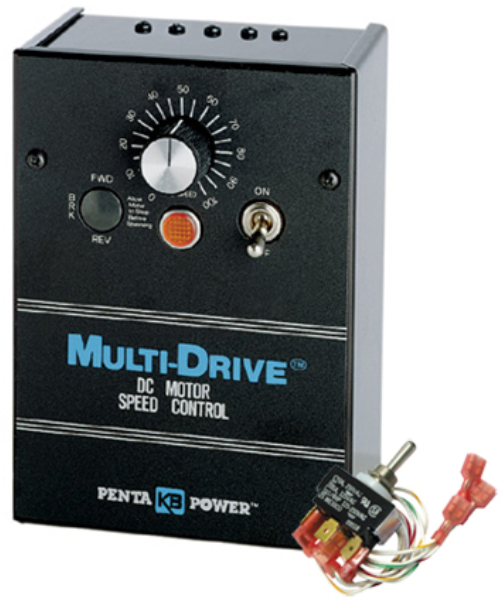

9371, (KBMD-240D) SCR DC Drive 3/4Hp 115AC~90VDC 1.5Hp 230AC~180VDC & 1Hp 115AC~90VDC 2Hp 230AC~180VDC W/Heat Sink & FWD/BRK/REV Switch NEMA 1

$763.92
Shipping calculated at checkout.

9371, (KBMD-240D) SCR DC Drive 3/4Hp 115AC~90VDC 1.5Hp 230AC~180VDC & 1Hp 115AC~90VDC 2Hp 230AC~180VDC W/Heat Sink & FWD/BRK/REV Switch NEMA 1 is backordered and will ship as soon as it is back in stock.

shipping

Estimate shipping

Description

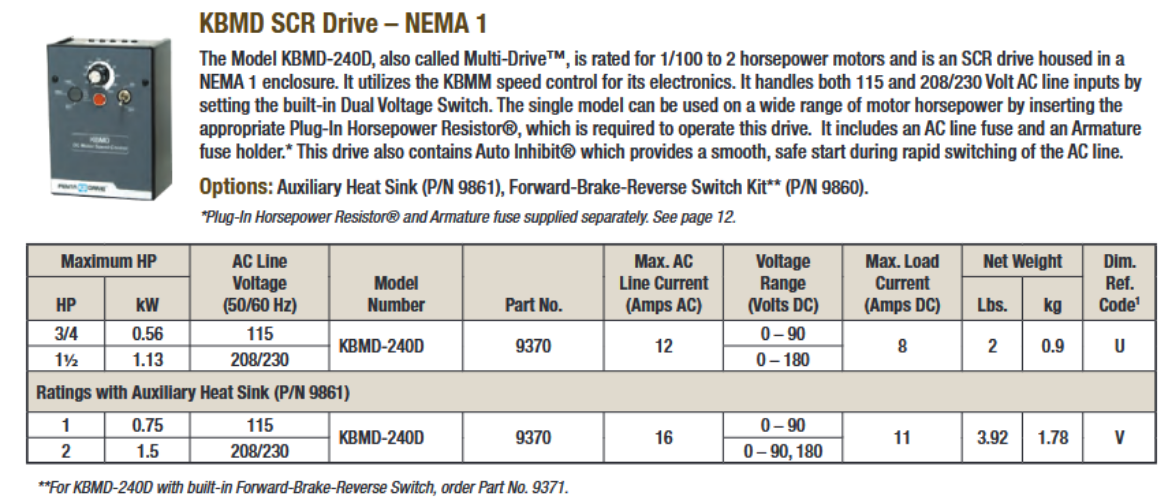

9371, (KBMD-240D) SCR DC Drive 3/4Hp 115AC~90VDC 1.5Hp 230AC~180VDC & 1Hp 115AC~90VDC 2Hp 230AC~180VDC FWD/BRK/REV Switch NEMA 1

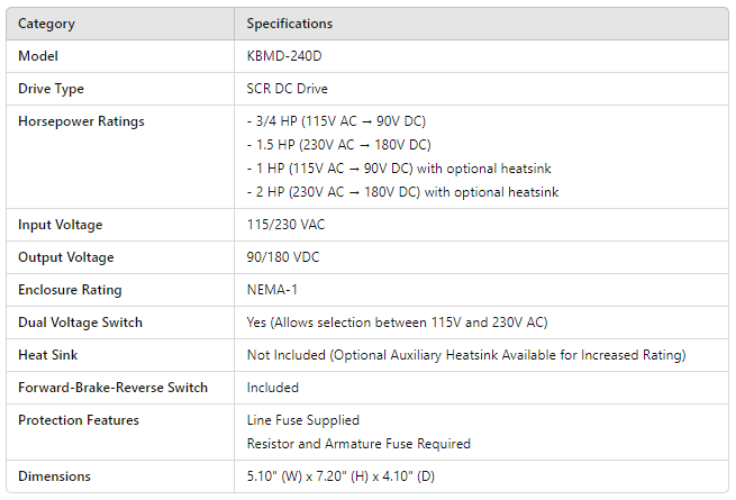

Category Specifications
Model KBMD-240D
Drive Type SCR DC Drive
Horsepower Ratings - 3/4 HP (115V AC → 90V DC)
- 1.5 HP (230V AC → 180V DC)
- 1 HP (115V AC → 90V DC) with optional heatsink
- 2 HP (230V AC → 180V DC) with optional heatsink
Input Voltage 115/230 VAC
Output Voltage 90/180 VDC
Enclosure Rating NEMA-1
Dual Voltage Switch Yes (Allows selection between 115V and 230V AC)
Heat Sink Not Included (Optional Auxiliary Heatsink Available for Increased Rating)
Forward-Brake-Reverse Switch Included
Protection Features Line Fuse Supplied
Resistor and Armature Fuse Required

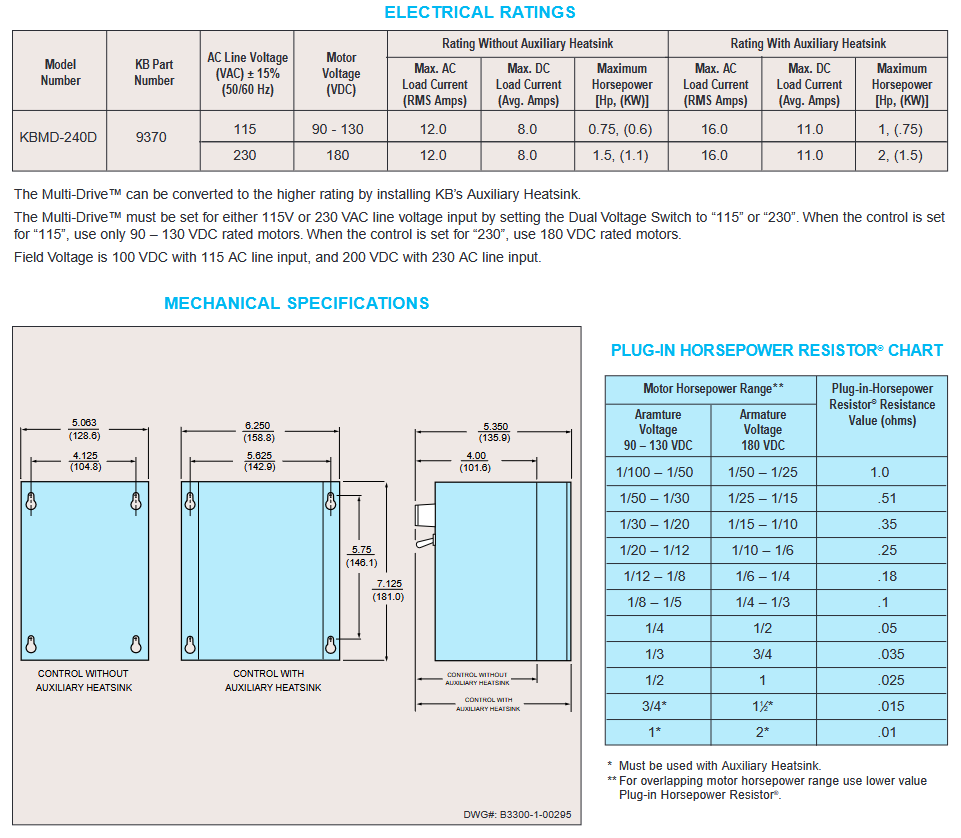

Dimensions 5.10" (W) x 7.20" (H) x 4.10" (D)
