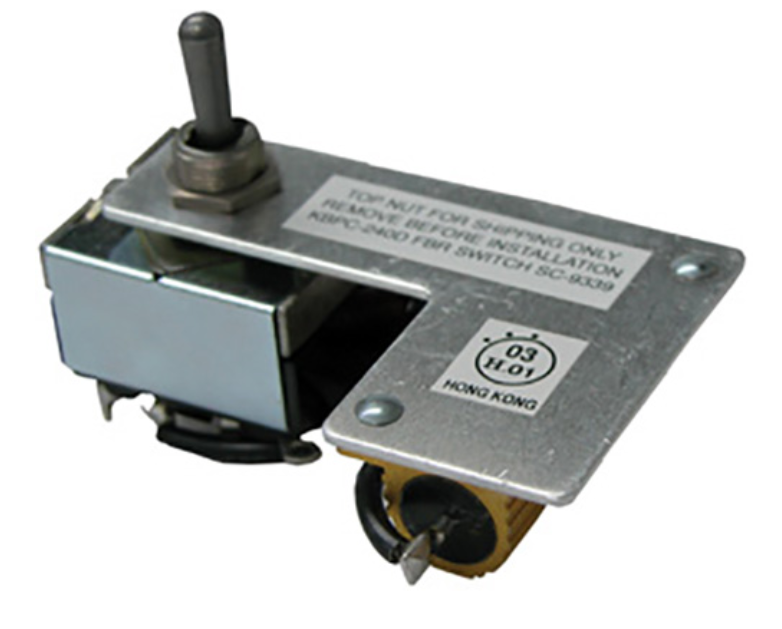

9339, KBPC, KBPW Forward - Brake - Reverse Switch kit (240D only)

Specification	Details
Part Number	9339
Product Name	Forward-Brake-Reverse (FBR) Switch Kit
Compatible Models	KBPC-240D, KBPW-240D
Functionality	Provides manual control for motor direction with dynamic braking
Switch Action	Includes a hesitation feature to prevent instantaneous direction changes
Dynamic Braking	Engages a dynamic brake resistor during switching to safely decelerate the motor
Installation Location	Designed to mount directly on the control's cover
Included Components	- Forward-Brake-Reverse switch - Prewired dynamic brake resistor - Mounting hardware
Safety Features	- Hesitation action to prevent motor damage - Inhibit circuit activation during braking
Operating Limitations	Recommended for occasional switching, up to three operations per minute
Installation Notes	- Remove existing hole plug before installation - Ensure AC power is disconnected during installation - Follow provided wiring diagram for proper connections
Weight	Approximately 0.5 lbs (0.23 kg)
Additional Information	Not compatible with KBPC-225D model; improper installation may cause catastrophic failure

Our stock of KB Electronic accessories features a range of control periphery products from switch kits and fuse kits to replacement potentiometers and AC line filters. These products provide more functions and better performance to your KB Electronics AC and DC drives.
