KB ELECTRONIC  |  SKU: EMN-019607

8800, (KBRG-225D) SCR DC Drive 1.5Hp-3Hp 16A 115/230VAC Input 90/180VDC Output IP20 Chassis Regen Reversing

$849.95
Shipping calculated at checkout.
shipping

Estimate shipping

Description

8800, (KBRG-225D) SCR DC Drive 1.5Hp-3Hp 16A 115/230VAC Input 90/180VDC Output IP20 Chassis Regen Reversing

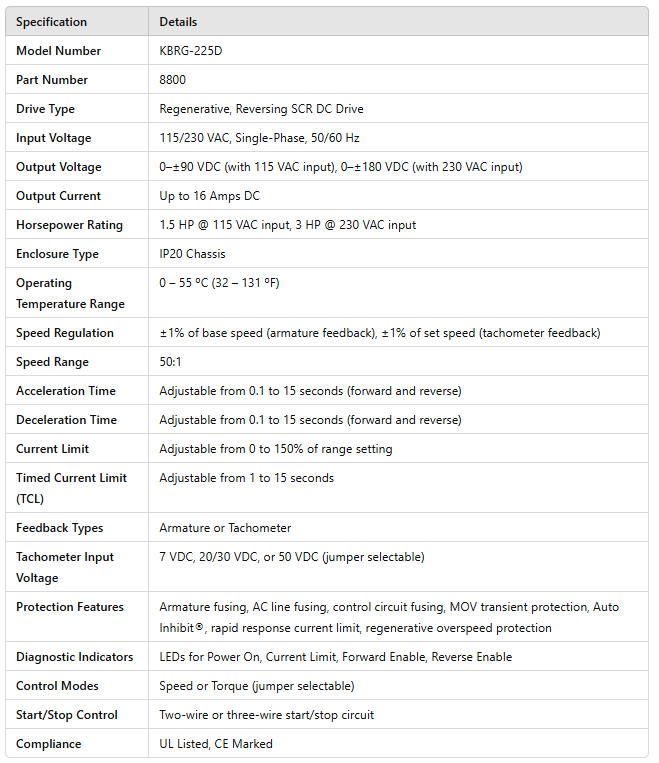

Specification Details
Model Number KBRG-225D
Part Number 8800
Drive Type Regenerative, Reversing SCR DC Drive
Input Voltage 115/230 VAC, Single-Phase, 50/60 Hz
Output Voltage 0–±90 VDC (with 115 VAC input), 0–±180 VDC (with 230 VAC input)
Output Current Up to 16 Amps DC
Horsepower Rating 1.5 HP @ 115 VAC input, 3 HP @ 230 VAC input
Enclosure Type IP20 Chassis
Operating Temperature Range 0 – 55 ºC (32 – 131 ºF)
Speed Regulation ±1% of base speed (armature feedback), ±1% of set speed (tachometer feedback)
Speed Range 50:1
Acceleration Time Adjustable from 0.1 to 15 seconds (forward and reverse)
Deceleration Time Adjustable from 0.1 to 15 seconds (forward and reverse)
Current Limit Adjustable from 0 to 150% of range setting
Timed Current Limit (TCL) Adjustable from 1 to 15 seconds
Feedback Types Armature or Tachometer
Tachometer Input Voltage 7 VDC, 20/30 VDC, or 50 VDC (jumper selectable)
Protection Features
Armature fusing, AC line fusing, control circuit fusing, MOV transient protection, Auto Inhibit®, rapid response current limit, regenerative overspeed protection
Diagnostic Indicators LEDs for Power On, Current Limit, Forward Enable, Reverse Enable
Control Modes Speed or Torque (jumper selectable)
Start/Stop Control Two-wire or three-wire start/stop circuit
Compliance UL Listed, CE Marked
