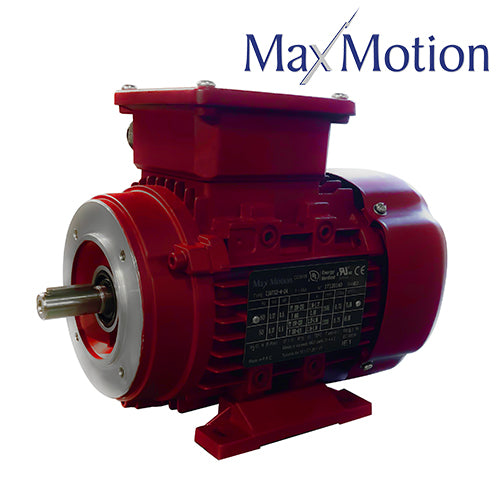

Maxmotion, IJA632-4-24, 0.25 hp, 1800 RPM, Frame 63, 230/460V, tefc , B3

MAXMOTION IJA632-4-24,

• 3 Phases
• 60 HZ,
• CLASS H,
• IP55,
• FRAME :63,
• B3,
• EFF:
• IE1,
• 10:1 CT/20:1
• VT,
• 1.15SF,
• ALUMINIUM,
• TEFC
• HP 0.25
• RPM: 1800
• Voltage: 208-230/460
• Phase: 3
• 50/60Hz
• Aluminium
• Métriques
• MaxMotion
• Bâti: 63 (IEC)
• Boîtier:TEFC

FEATURES:

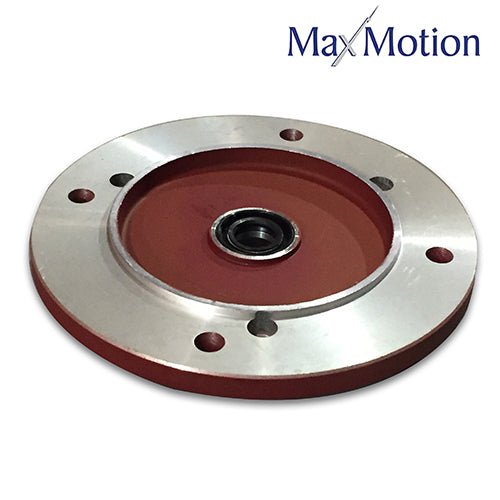

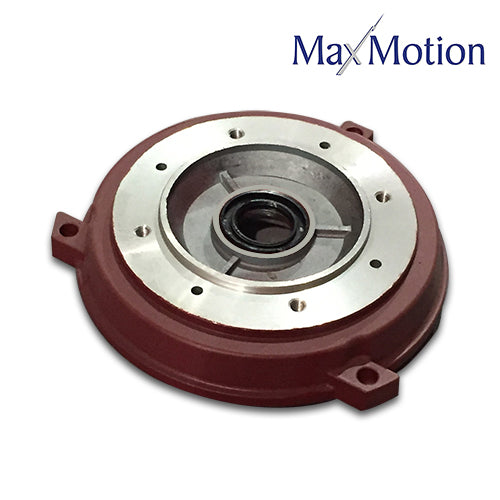

• B34 Flange already installed

• Inverter Duty Magnet Wire

• Meets or exceeds MG1 Part 31.4.4.2

• Class H Insulation, with B Temperature Rise

• 50/60 Hz

• IP55 Inversion Protection

• Inverter Duty 10:1 Constant Torque, 20:1 Variable Torque

• 1.15 Service Factor

• Rotatable / Removable Base 56-160

• SKF High Temp bearings

• 56-112 Frames come with Seal / lubricated Bearings

• Aluminum Construction

• IEC Design N, with NEMA B Torque characteristics

• Terminal Blocks, Stud connection

• CE, cUL, cRUus Approval - Suitable for export to over 28 countries

• Industry leading Three Years Warranty SPECIAL FEATURE:

• Custom capabilities for unique voltage windings, 2 speeds, USDA wash-down, special shafts & flanges with typical turn-around in 3-5 working days
