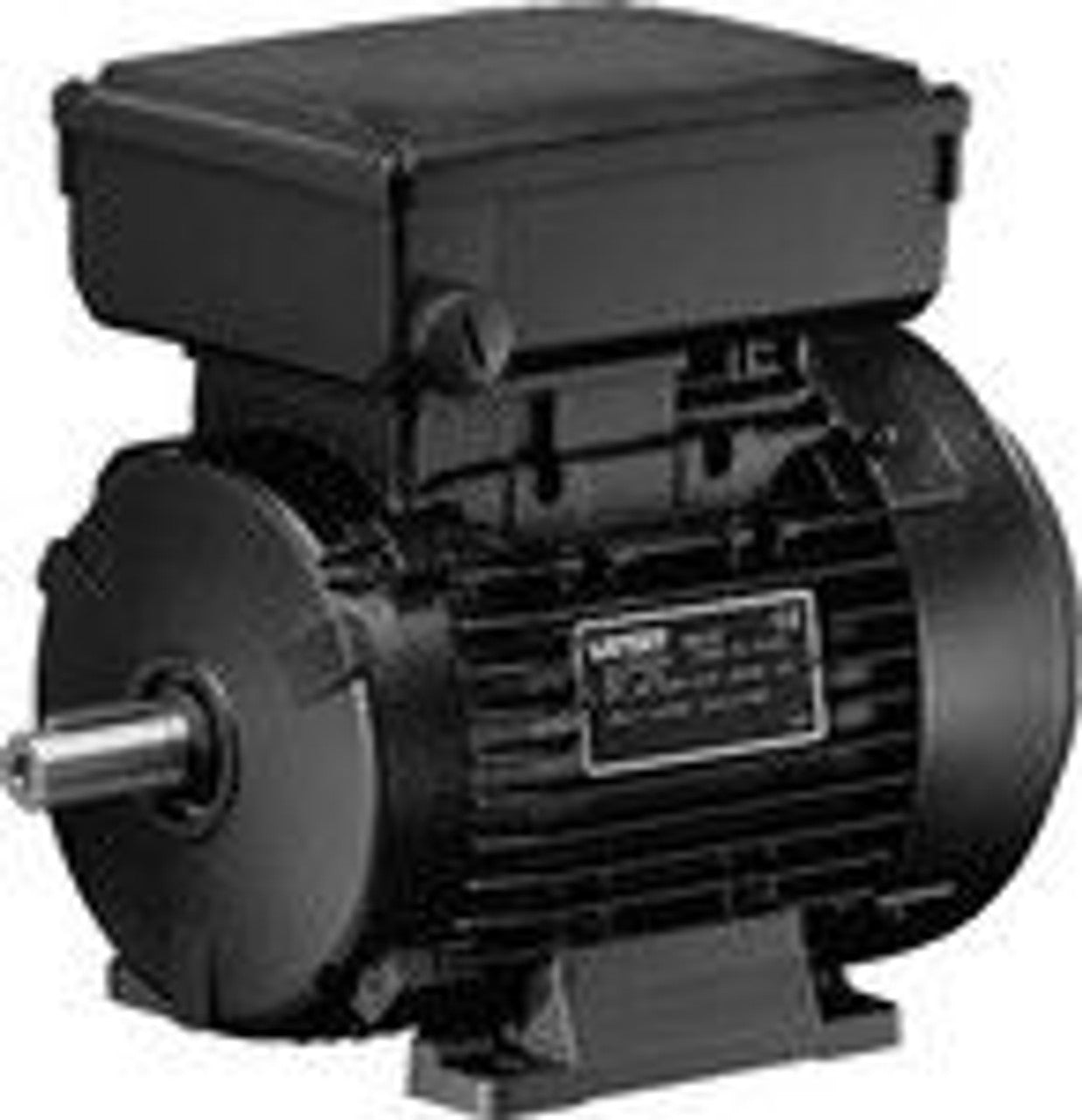

LM90LS2-230-B14, 2Hp, 3600RPM, 230V, 1PH, 60Hz, TEFC, IP54, Frame 90LS2, C-Flange

LM90LS2-230-B14, 2Hp, 3600RPM, 230V, 1PH, 60Hz, TEFC, IP54, Frame 90LS2, C-Flange

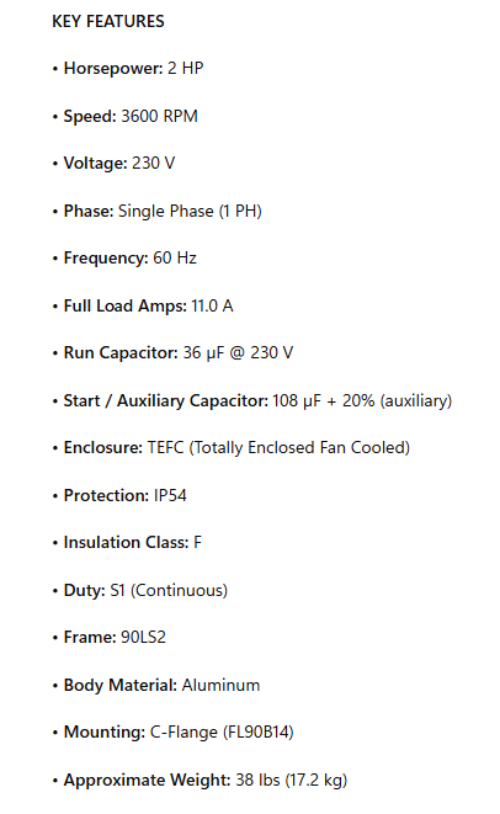

KEY FEATURES

• Horsepower: 2 HP

• Speed: 3600 RPM

• Voltage: 230 V

• Phase: Single Phase (1 PH)

• Frequency: 60 Hz

• Full Load Amps: 11.0 A

• Run Capacitor: 36 µF @ 230 V

• Start / Auxiliary Capacitor: 108 µF + 20% (auxiliary)

• Enclosure: TEFC (Totally Enclosed Fan Cooled)

• Protection: IP54

• Insulation Class: F

• Duty: S1 (Continuous)

• Frame: 90LS2

• Body Material: Aluminum

• Mounting: C-Flange (FL90B14)

• Approximate Weight: 38 lbs (17.2 kg)
