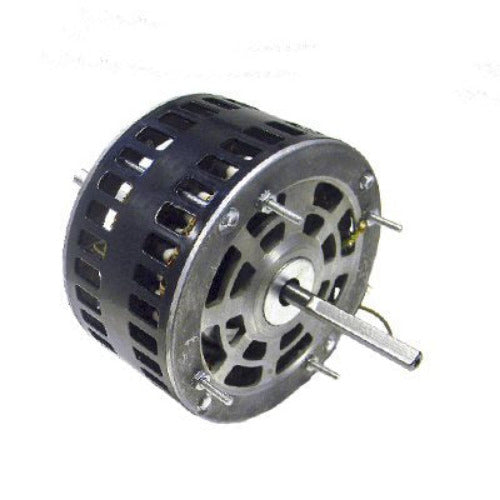

SS2655, OEM Remplacement Motor, 1/12Hp, 1550 RPM, 120V, 1Ph, 60Hz, CCWLE

SS2655, OEM Remplacement Motor, 1/12Hp, 1550 RPM, 120V, 1Ph, 60Hz, CCWLE

Replace : A0816B2643, E62788 , A0812B2355, A0816B2643, 23203R, 23200R, M4-R2655

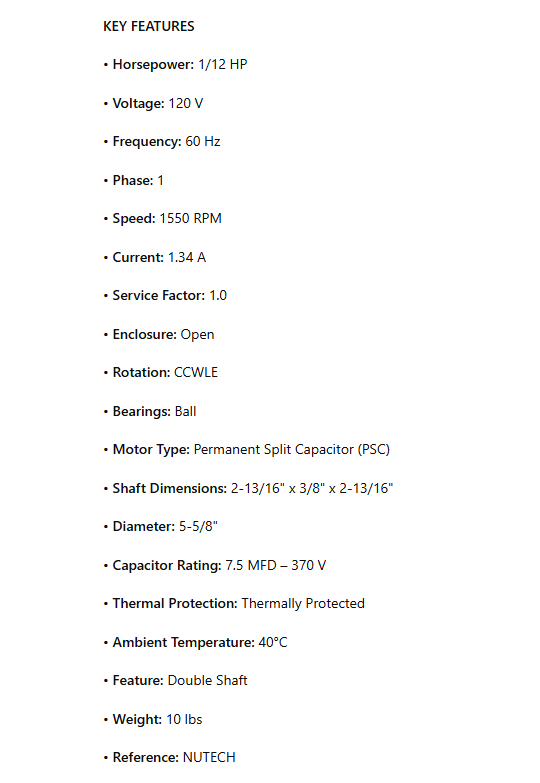

KEY FEATURES

• Horsepower: 1/12 HP

• Voltage: 120 V

• Frequency: 60 Hz

• Phase: 1

• Speed: 1550 RPM

• Current: 1.34 A

• Service Factor: 1.0

• Enclosure: Open

• Rotation: CCWLE

• Bearings: Ball

• Motor Type: Permanent Split Capacitor (PSC)

• Shaft Dimensions: 2-13/16" x 3/8" x 2-13/16"

• Diameter: 5-5/8"

• Capacitor Rating: 7.5 MFD – 370 V

• Thermal Protection: Thermally Protected

• Ambient Temperature: 40°C

• Feature: Double Shaft

• Weight: 10 lbs

• Reference: NUTECH
