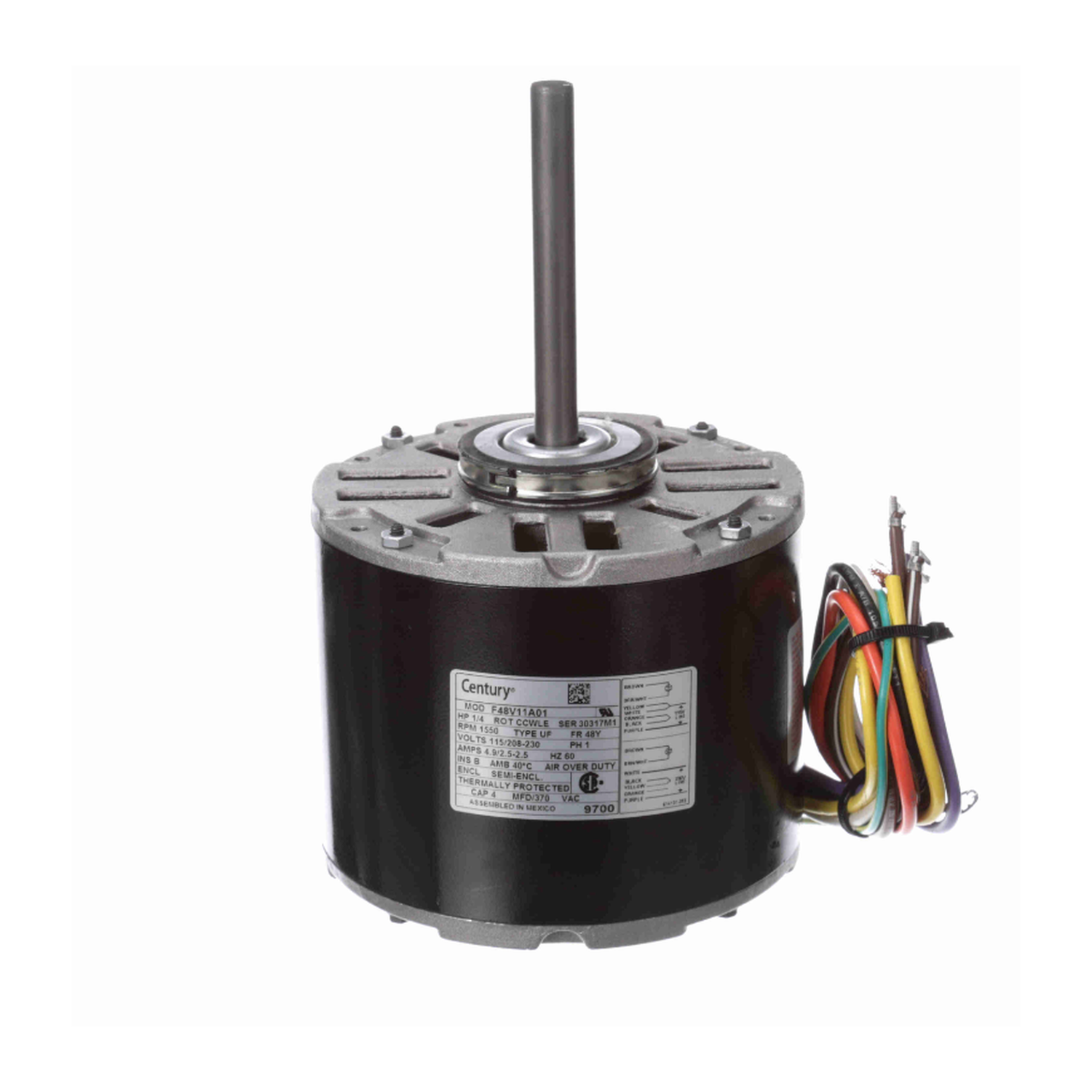

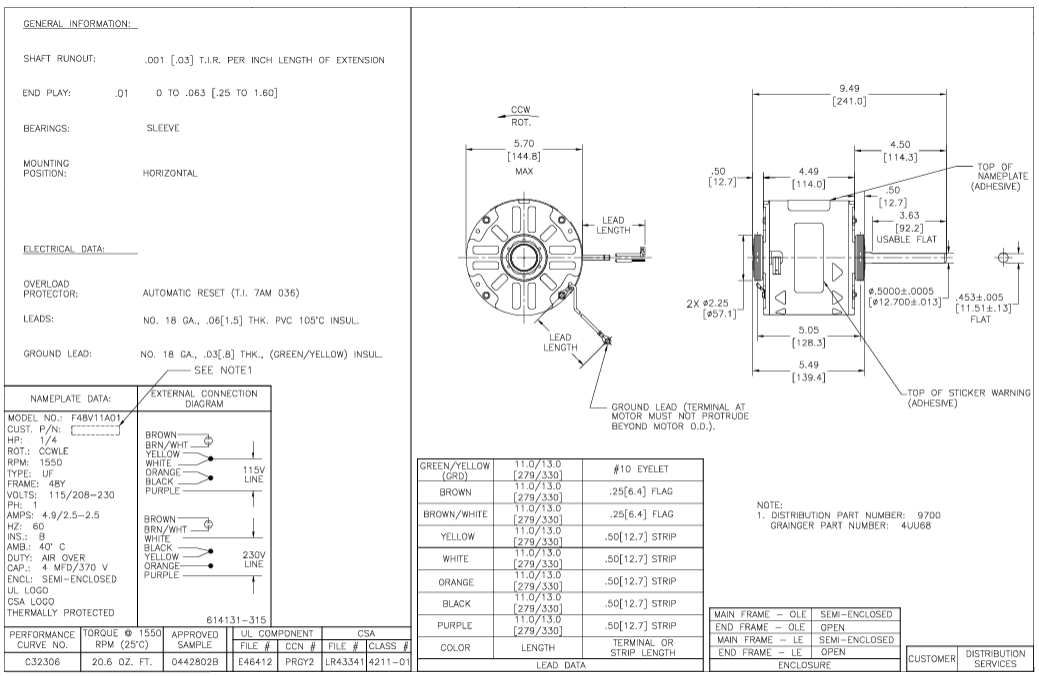

9700, Fan and Blower Motor, 1/4Hp, 1550 RPM, 115/208/230V, 1Ph, 60Hz, Frame 48Y, 1 Speed, semi Enclosed , F48V11A01

9700, Fan and Blower Motor, 1/4Hp, 1550 RPM, 115/208/230V, 1Ph, 60Hz, Frame 48Y, 1 Speed, semi Enclosed , F48V11A01

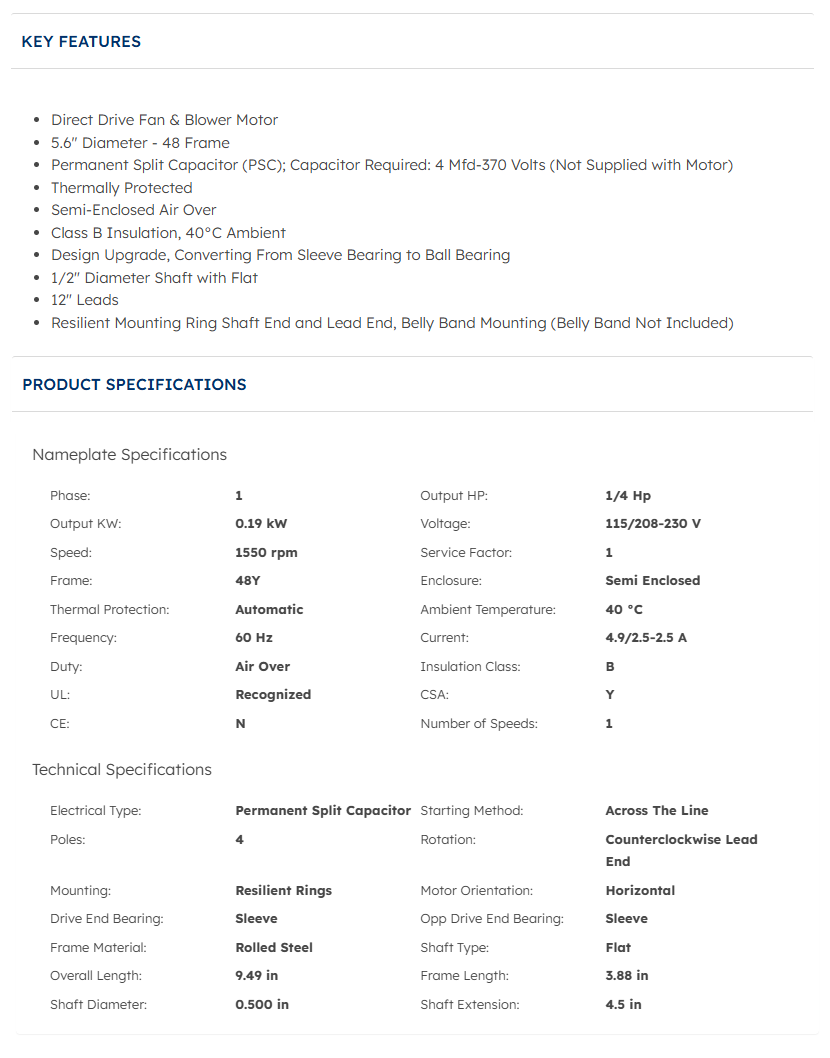

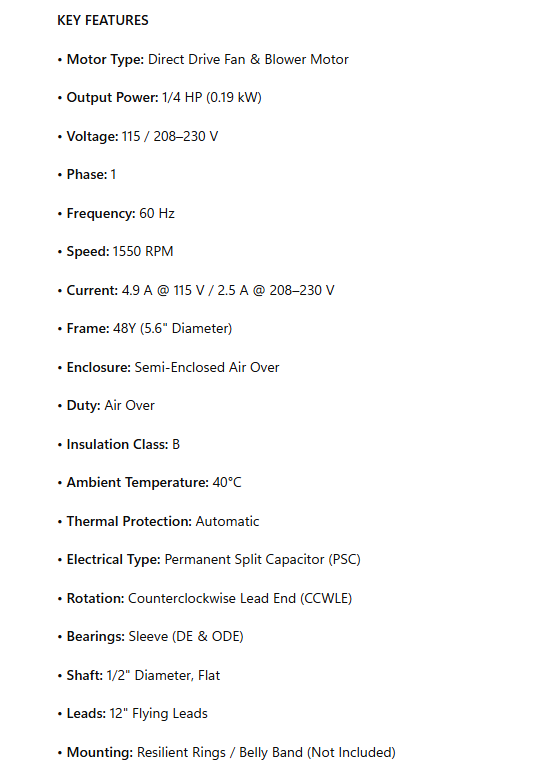

KEY FEATURES

• Motor Type: Direct Drive Fan & Blower Motor

• Output Power: 1/4 HP (0.19 kW)

• Voltage: 115 / 208–230 V

• Phase: 1

• Frequency: 60 Hz

• Speed: 1550 RPM

• Current: 4.9 A @ 115 V / 2.5 A @ 208–230 V

• Frame: 48Y (5.6" Diameter)

• Enclosure: Semi-Enclosed Air Over

• Duty: Air Over

• Insulation Class: B

• Ambient Temperature: 40°C

• Thermal Protection: Automatic

• Electrical Type: Permanent Split Capacitor (PSC)

• Rotation: Counterclockwise Lead End (CCWLE)

• Bearings: Sleeve (DE & ODE)

• Shaft: 1/2" Diameter, Flat

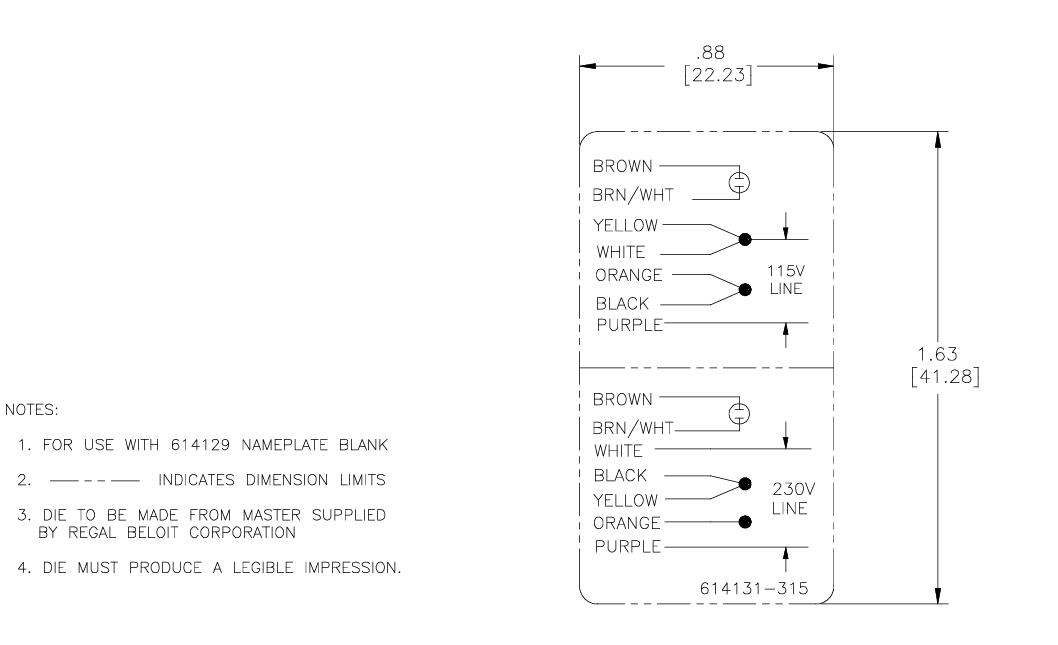

• Leads: 12" Flying Leads

• Mounting: Resilient Rings / Belly Band (Not Included)
