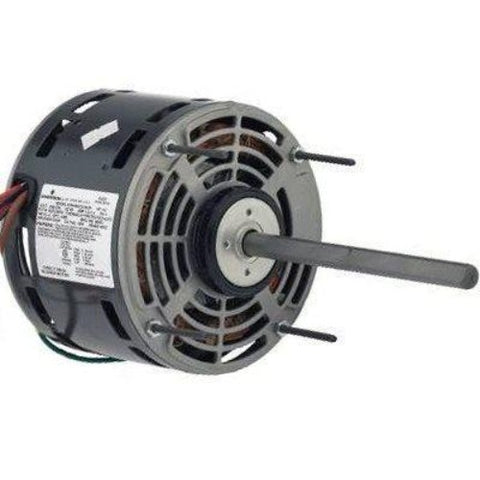

1699,Us Motors, 1 HP, 115V, 1625/3SPD, FR:48Y, X023, 048A11O1583, MARATHON

US MOTORS

$496.85

1699 US MOTORS, REPLACED MARATHON X023, 048A11O1583,

Horsepower :1
Voltage :115
Amps :11.10
RPM :1625
Frequency :60 Hz
Length :5-29/32"
"C" Dim. :12-29/32"
Enclosure :Open Air Over
Shaft Dim. :1/2" x 6.00"
Type :Permanent Split Capacitor
Speeds :3
Diameter :5-3/5"
Frame :48Y
Bearings :Self-Aligning Bearing
Rotation :Reversible
Protector :Automatic
Service Factor :1.00
Phase :1
Ambient Temp. :40°C
Feature(s) :Class 'B' Insulation, 36" Leads, 2.25" Diameter Hubs with 2.5" Diameter Kit Included
Weight (lbs.) :22
