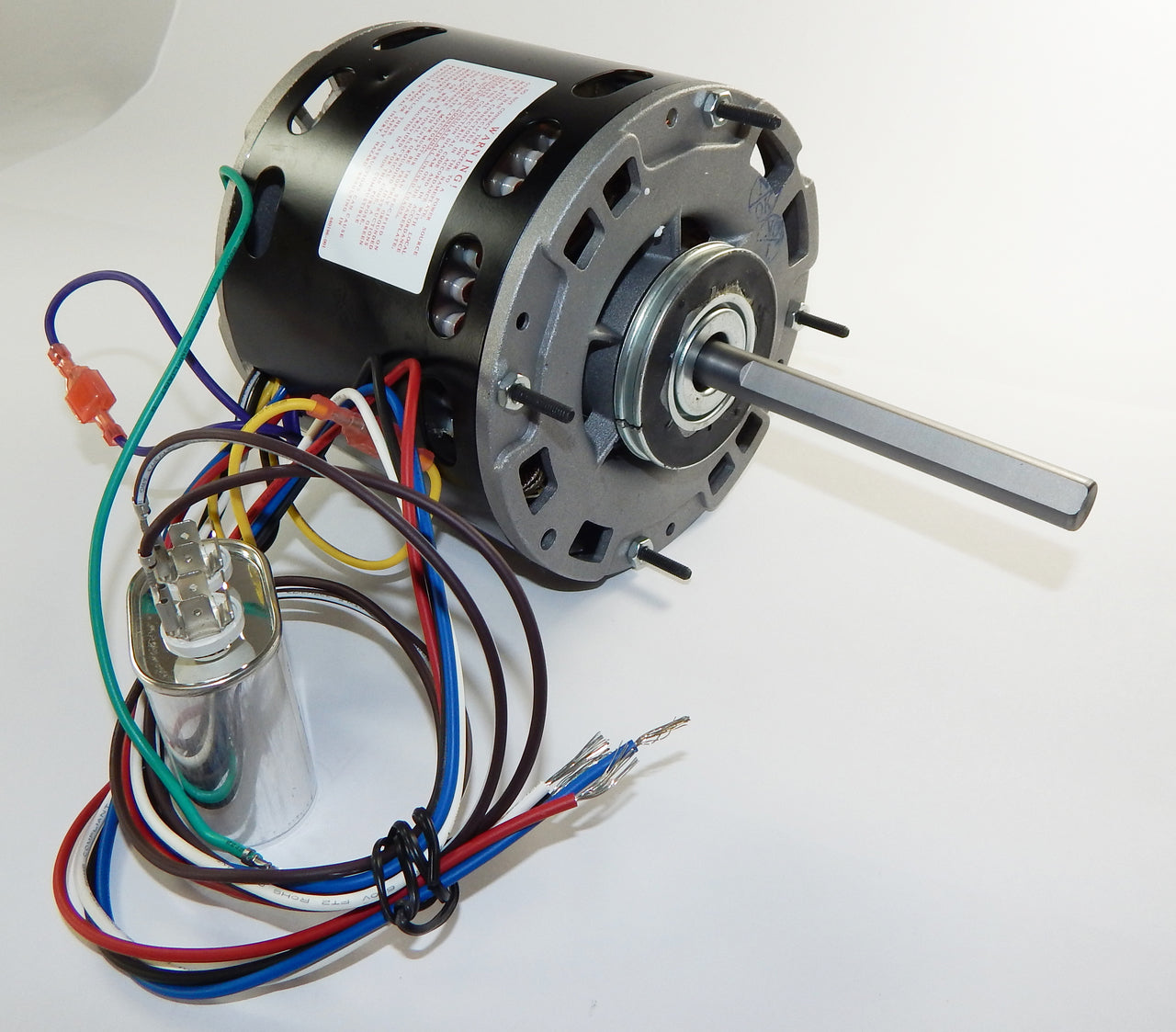

EM3584, Economaster, 1/4 hp,1075/3spd, 208-230V,fr 48, Odp, Reversible

E-Motor Nations

$194.77

EM3584 CENTURY, ECONOMASTER. DD-3584 ROTOM, GE 3584, D1026 CENTURY

Horsepower :1/4

Voltage :208-230

Amps :2.00

RPM :1075

Frequency :60 Hz

Length :4.00"

Enclosure :Open

Shaft Dim. :1/2” x 4.00”

Type :Permanent Split Capacitor

Speeds :3

Diameter :5-5/8"

Frame :48

Bearings :Sleeve

Rotation :Reversible

Protector :Thermally Protected

Phase :1

Ambient Temp. :40°C

Capacitor Rating :5MFD-370V

Feature(s) :Resilient Rings, Reversing Plug, Extended Thru-Bolts

Weight (lbs.) :10
EconoMaster - Direct Drive Fan & Blower Motor
5.6" Diameter - 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
1/2" Diameter Shaft with Flat
25" Leads
Extended Studs Shaft End, Resilient Ring Mounting, Belly Band

Nameplate Specifications

Output HP:	1/4 Hp	Output KW:	0.19 kW
Frequency:	60 Hz	Voltage:	208-230 V
Current:	1.9- 1.1- 0.9 A	Speed:	1075 rpm
Service Factor:	1	Phase:	1
Duty:	Air Over	Insulation Class:	B
Frame:	48Y	Enclosure:	Open Enclosed
Thermal Protection:	Automatic	Ambient Temperature:	40 °C
UL:	Recognized	CSA:	Y
CE:	N

Technical Specifications

Electrical Type:	Permanent Split Capacitor	Starting Method:	Across The Line
Poles:	6	Rotation:	Reversible
Mounting:	Extended Studs	Motor Orientation:	Horizontal
Drive End Bearing:	Ball	Opp Drive End Bearing:	Ball
Frame Material:	Rolled Steel	Shaft Type:	Flat
Overall Length:	8.99 in	Frame Length:	3.38 in
