MARATHON | SKU:
EMN-000176

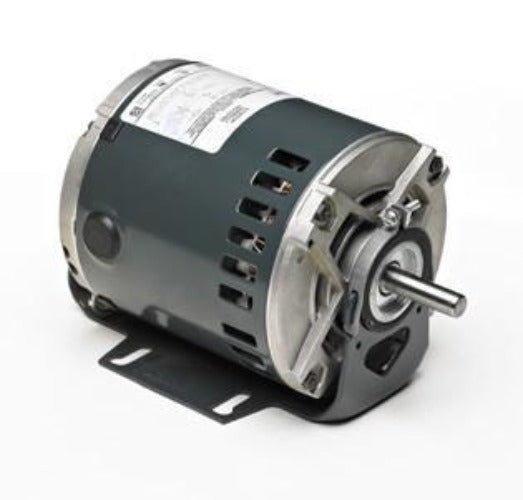

B208, 1/2 hp, 1725 rpm, 115 volts, fr 48Y, odp, marathon, 048S17D2109
Regular price
$329.35
Unit price
/
Unavailable
B208, 1/2 hp, 1725 rpm, 115 volts, fr 48Y, odp, marathon, 048S17D2109 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
![B208, 1/2 HP, 1725 RPM, 115 VOLTS, FRAME 48Y, ODP, MARATHON ELECTRIC MOTORS, 048S17D2109 - HVAC ELECTRIC MOTOR - MARATHON - electric motors - [product_tags]- motor electric - moteur électrique - moteurs - drive - replacement - venmar - hvac - méchoui - capacitor - condensateur](http://www.emotornations.com/cdn/shop/products/B207_f0f03fbe-d577-4681-95a7-d60184e54cc7.jpg?v=1756481073&width=112)
B208, 1/2 hp, 1725 rpm, 115 volts, fr 48Y, odp, marathon, 048S17D2109
Regular price
$329.35
Unit price
/
Unavailable
Description
Description
B208, 1/2 HP, 115V, 1800 RPM, 1PH, DRIP PROOF, FRAME 48Y, ODP, 048S17D2109,MARATHON,GF2034,BF-4708,
General Specifications
| UPC: | 722856039842 | Weight: | 20.00 LB |
| Packaged Length: | 11.06 IN | Packaged Width: | 6.75 IN |
| Packaged Height: | 6.62 IN |
Nameplate Specifications
| Output HP: | 0.50 Hp | Output KW: | 0.37 kW |
| Frequency: | 60 Hz | Voltage: | 115 V |
| Current: | 7.5 A | Speed: | 1725 rpm |
| Service Factor: | 1.25 | Phase: | 1 |
| Efficiency: | 66 % | Power Factor: | 69.6 |
| Duty: | Continuous | Insulation Class: | B |
| Design Code: | NO DESIGN CODE | KVA Code: | M |
| Frame: | 48Z | Enclosure: | Drip Proof |
| Thermal Protection: | Automatic | Ambient Temperature: | 40 °C |
| Drive End Bearing Size: | 6203 | Opp Drive End Bearing Size: | 6203 |
| UL: | Recognized | CSA: | Y |
| CE: | Y | IP Code: | 22 |
| Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Split Phase | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Selective Counterclockwise |
| Resistance Main: | 0 Ohms | Mounting: | Resilient Base |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | Single Special Extension | Overall Length: | 10.43 in |
| Shaft Diameter: | 0.500 in | Shaft Extension: | 2.01 in |
| Assembly/Box Mounting: | F1 ONLY |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (OZ-FT) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Break-Down | 17.50 | 254.0 | 52.80 | 216.0 | 0 | 0.00 | 0.0 | 0.50 |
| Full Load | 6.90 | 100.0 | 24.40 | 100.0 | 1,725 | 0.00 | 0.0 | 0.50 |
| Locked-Rotor | 48.90 | 709.0 | 30.00 | 123.0 | 0 | 0.00 | 0.0 | 0.50 |
Load Characteristics
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 125 % |
| Current (Amps) | 8.80 | 9.60 | 10.60 | 12.00 | 13.80 | 16.00 |
| Rated Output (KW) | 0.09 | 0.19 | 0.30 | 0.42 | 0.54 | 0.67 |
| Efficiency (%) | 0.0 | 49.5 | 63.0 | 67.5 | 69.0 | 68.5 |
| Power Factor (%) | 18.0 | 35.5 | 50.0 | 61.0 | 68.5 | 73.5 |
| Speed (RPM) | 1,795 | 1,780 | 1,765 | 1,750 | 1,730 | 1,710 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| Torque (OZ-FT) | 0.00 | 6.10 | 12.20 | 18.50 | 24.50 | 30.50 |
