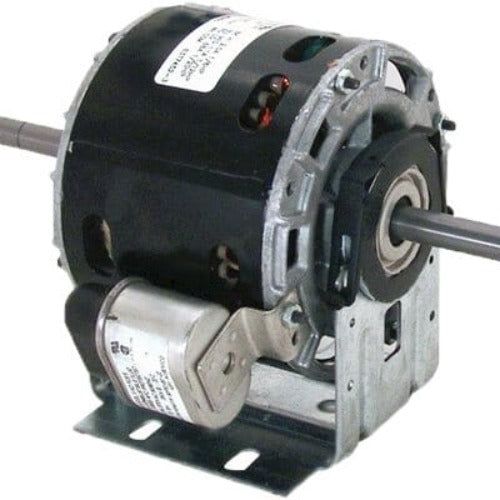

452B, Century,1/25 Hp,1075 RPM. 115V, Dbl Shaft, 4 Spd, Frame:42, OAO,

CENTURY

$534.00

452B, Century, Ao Smith,DE3D377N,

Fan Coil - Dual Wheel Blower Motor
5" Diameter - 42 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 6 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Open Air Over
Class A Insulation, 40°C Ambient
Sleeve Bearing
3/8" Diameter Double Shaft with Flat
36" Leads
Resilient Base

Nameplate Specifications

Output HP:	1/20, 1/25, 1/35, 1/50 Hp	Output KW:	0.04 kW
Frequency:	60 Hz	Voltage:	115 V
Current:	0.8 A	Speed:	1075 rpm
Service Factor:	1	Phase:	1
Duty:	Continuous Air Over	Insulation Class:	A
Frame:	42	Enclosure:	Open Air Over
Thermal Protection:	Thermally Protected	Ambient Temperature:	40 °C
UL:	Recognized	CSA:	Y
CE:	N	Number of Speeds:	4
