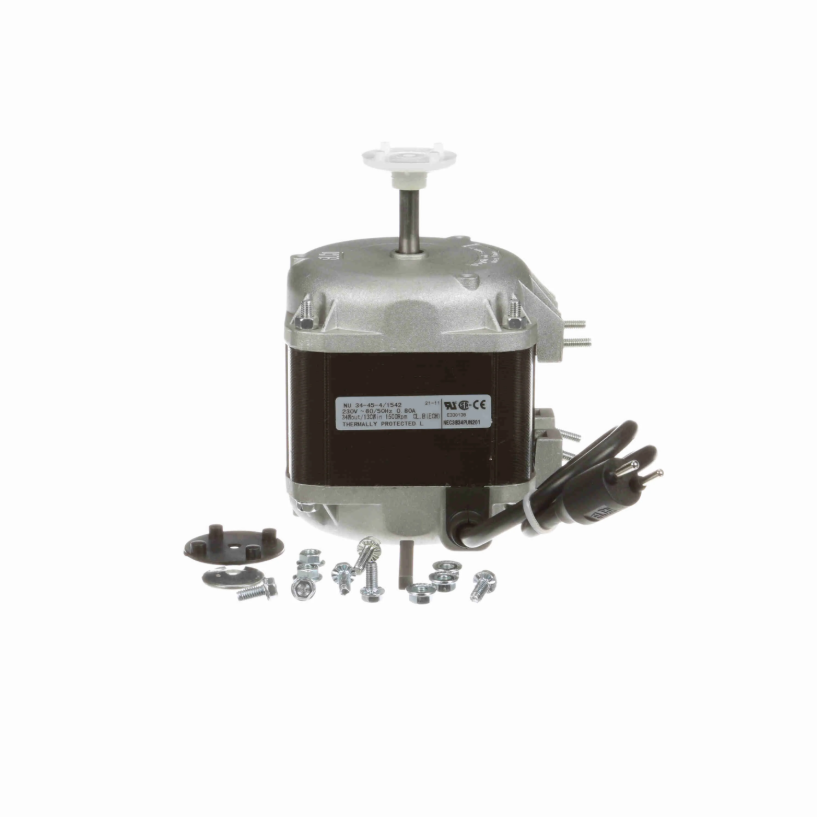

EC34W230V1542, 1/20Hp, 34 Watt, 230 Volts, 1550 Rpm, Teao, Unit bearing,

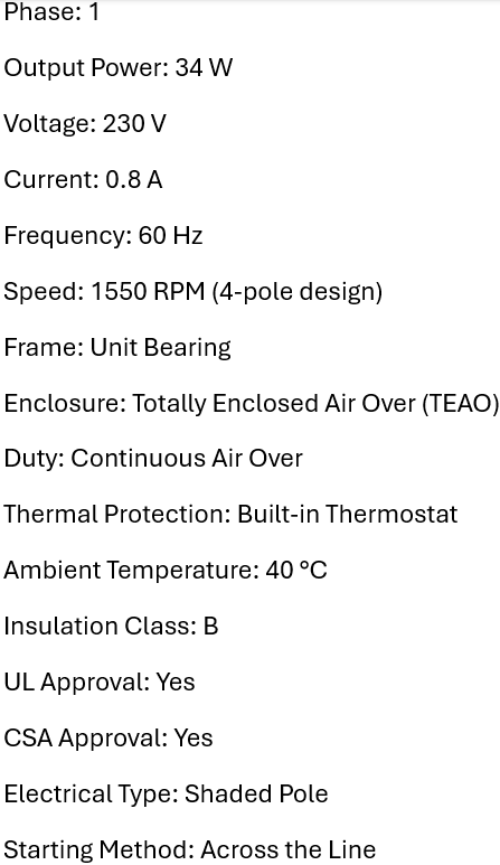

• Phase: 1

• Output Power: 34 W

• Voltage: 230 V

• Current: 0.8 A

• Frequency: 60 Hz

• Speed: 1550 RPM (4-pole design)

• Frame: Unit Bearing

• Enclosure: Totally Enclosed Air Over (TEAO)

• Duty: Continuous Air Over

• Thermal Protection: Built-in Thermostat

• Ambient Temperature: 40 °C

• Insulation Class: B

• UL Approval: Yes

• CSA Approval: Yes

• Electrical Type: Shaded Pole

• Starting Method: Across the Line

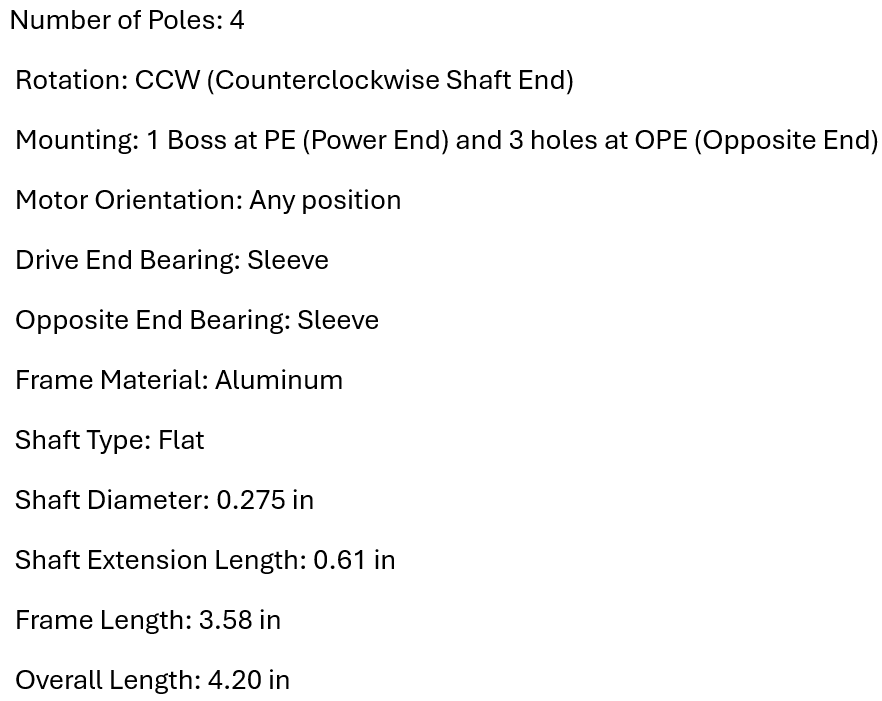

• Number of Poles: 4

• Rotation: CCW (Counterclockwise Shaft End)

• Mounting: 1 Boss at PE (Power End) and 3 holes at OPE (Opposite End)

• Motor Orientation: Any position

• Drive End Bearing: Sleeve

• Opposite End Bearing: Sleeve

• Frame Material: Aluminum

• Shaft Type: Flat

• Shaft Diameter: 0.275 in

• Shaft Extension Length: 0.61 in

• Frame Length: 3.58 in

• Overall Length: 4.20 in
