MARATHON  |  SKU: EMN-000241A

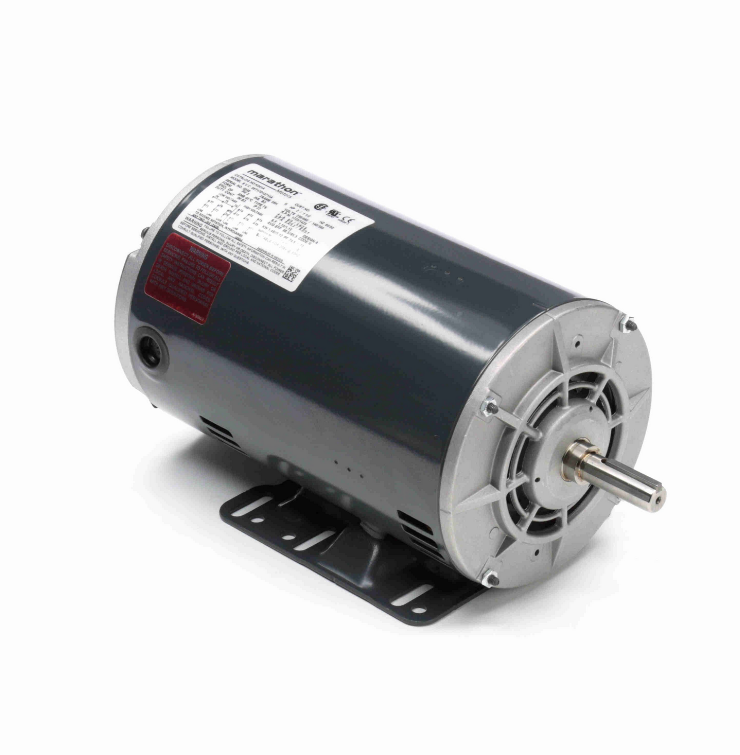

EXK041, 2 HP, 1800 Rpm, 208-230/460V, K041A, 056T17D5310, D2P2AH

$539.96

EXK041, 2 HP, 1800 Rpm, 208-230/460V, K041A, 056T17D5310, D2P2AH is backordered and will ship as soon as it is back in stock.

shipping

Estimate shipping

Description
MARATHON Catalog Number: EK041, K041, K041A,


Model Number: 056T17D5310,

General Purpose, Three Phase
Dripproof, Rigid Base

Features:
• EISA compliant efficiencies, as noted
• Ball bearings (except where noted)
• NEMA Service Factors
• Will accept C-Face Kits, see Accessories Section (except as noted)
• UL Recognized and CSA Certified



Nameplate Specifications

Output HP: 2 Hp Output KW: 1.5 kW
Frequency: 60 Hz Voltage: 230/460 V
Current: 6.0/3.0 A Speed: 1725 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 86.5 % Power Factor: 74.5
Duty: Continuous Insulation Class: B
Design Code: A KVA Code: N
Frame: 56H Enclosure: Drip Proof
Thermal Protection: No Protection Ambient Temperature: 40 °C
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: Y IP Code: 22
Number of Speeds: 1
