MARATHON  |  SKU: EMN-007452

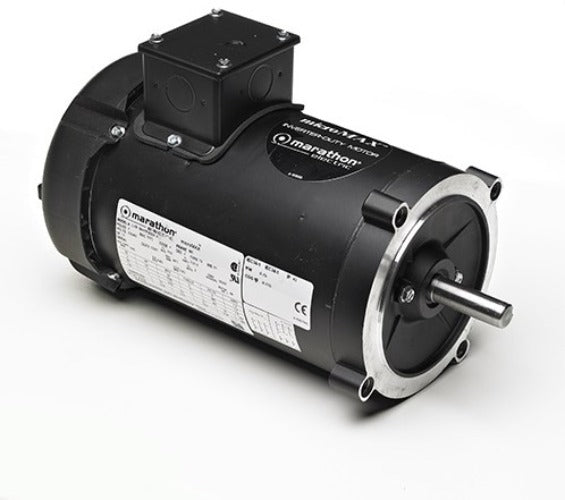

Y362, Marathon, MicroMax, 3/4 Hp, 1725 Rpm, 230/460V, 56C, 056H17F2017

$732.43
shipping

Estimate shipping

Description

Y362, Marathon, Part # 056H17F2017,

Output HP: 0.75 Hp Output KW: 0.56 kW
Frequency: 60 Hz Voltage: 230/460 V
Current: 2.8/1.4 A Speed: 1725 rpm
Service Factor: 1 Phase: 3
Efficiency: 75.5 % Power Factor: 70.5
Duty: Continuous Insulation Class: H
Design Code: INV KVA Code: L
Frame: 56C Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: Y IP Code: 43

Technical Specifications

Electrical Type: Squirrel Cage Inverter Duty Starting Method: Inverter Only
Poles: 4 Rotation: Reversible
Resistance Main: 23 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 56 Overall Length: 11.19 in
Frame Length: 6.25 in Shaft Diameter: 0.625 in
Shaft Extension: 2.06 in Assembly/Box Mounting: F3
