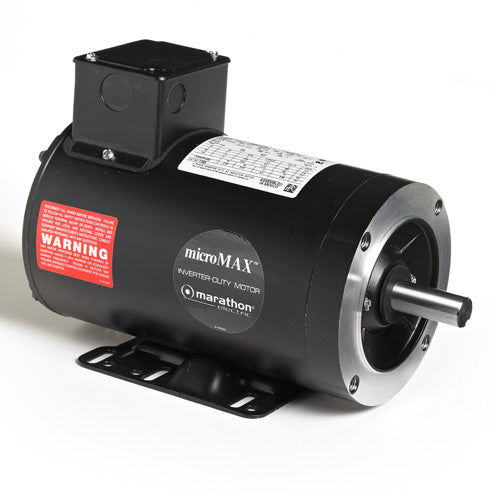

Y360, Marathon, MicroMax, 1/2 Hp, 1725 Rpm, 230/460V, 56C, 056H17T2017

MARATHON

  • $594.57


Y360, Marathon, Part # 056H17T2017

Nameplate Specifications

Output HP: 0.50 Hp Output KW: 0.37 kW
Frequency: 60 Hz Voltage: 230/460 V
Current: 1.8/0.90 A Speed: 1725 rpm
Service Factor: 1 Phase: 3
Efficiency: 74 % Power Factor: 69
Duty: Continuous Insulation Class: H
Design Code: INV KVA Code: N
Frame: 56C Enclosure: Totally Enclosed Non Ventilated
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: Y IP Code: 43

Technical Specifications

Electrical Type: Squirrel Cage Inverter Duty Starting Method: Inverter Only
Poles: 4 Rotation: Reversible
Resistance Main: 29.2 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 56 Overall Length: 9.81 in
Frame Length: 6.25 in Shaft Diameter: 0.625 in
Shaft Extension: 2.06 in Assembly/Box Mounting: F3
