US MOTORS  |  SKU: EMN-019094

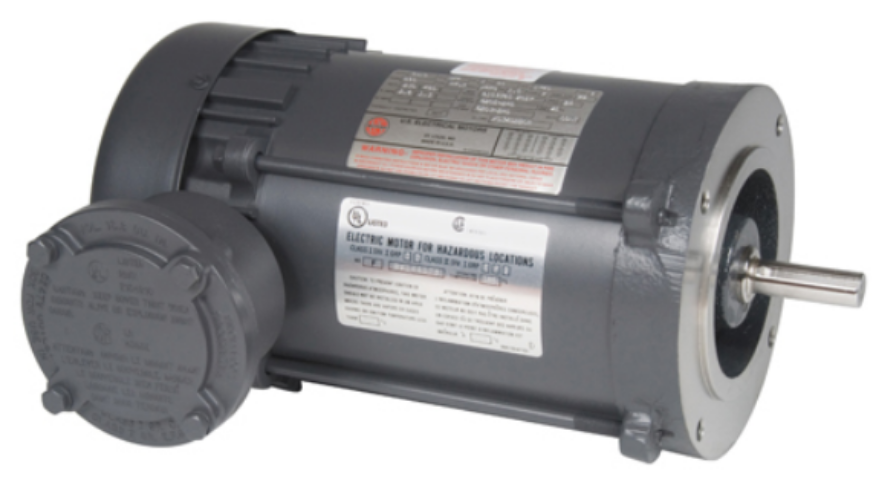

XS34CA2JCR, 3/4Hp 1800 115/208-230/1/60 EPFC 56C Rolled Steel Rigid Base EXPLOSION PROOF Div.1 CL.I GR. C&D CL.II GR. E.F&G AUTO OVERLOAD IP54

$678.18
shipping

Estimate shipping

Description

XS34CA2JCR, 3/4Hp 1800 115/208-230/1/60 EPFC 56C Rolled Steel Rigid Base EXPLOSION PROOF Div.1 CL.I GR. C&D CL.II GR. E.F&G AUTO OVERLOAD IP54

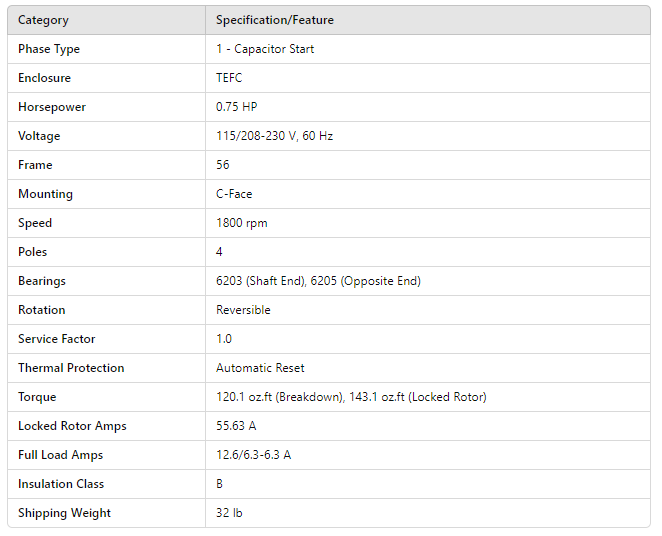

Category Specification/Feature
Phase Type 1 - Capacitor Start
Enclosure TEFC
Horsepower 0.75 HP
Voltage 115/208-230 V, 60 Hz
Frame 56
Mounting C-Face
Speed 1800 rpm
Poles 4
Bearings 6203 (Shaft End), 6205 (Opposite End)
Rotation Reversible
Service Factor 1.0
Thermal Protection Automatic Reset
Torque 120.1 oz.ft (Breakdown), 143.1 oz.ft (Locked Rotor)
Locked Rotor Amps 55.63 A
Full Load Amps 12.6/6.3-6.3 A
Insulation Class B
Shipping Weight 32 lb
