BALDOR  |  SKU: EMN-019294

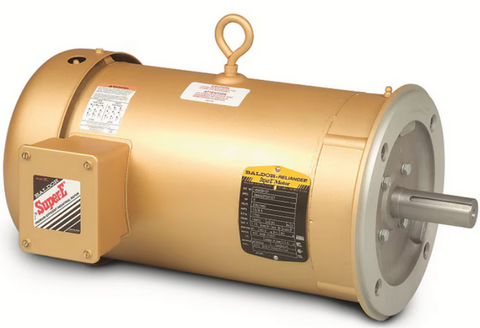

VEM3613T-5, Baldor 5Hp, 575V, 3450RPM, 3PH, 60HZ, 184TC, 3630M, TEFC, F1

Regular price $1,269.10



shipping

Estimate shipping

Description

VEM3613T-5, Baldor 5Hp, 575V, 3450RPM, 3PH, 60HZ, 184TC, 3630M, TEFC, F1

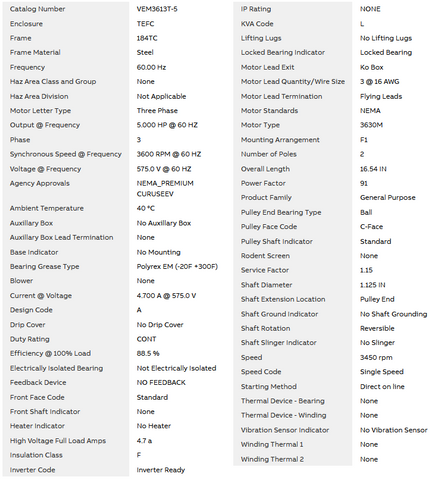

Feature Specification
Catalog Number VEM3613T-5
Enclosure TEFC
Frame / Material 184TC / Steel
Frequency 60 Hz
Voltage 575 V
Phase 3
Power 5 HP
Speed 3450 RPM
Poles 2
Efficiency 88.5%
Service Factor 1.15
Mounting F1
Bearing Grease Polyrex EM (-20°F to 300°F)
Insulation Class F
Inverter Ready Yes
IP Rating None
KVA Code L
Duty Rating Continuous
Shaft Diameter 1.125 in
Overall Length 16.54 in
Lead Exit KO Box
Lead Termination Flying Leads (3 @ 16 AWG)
Standards NEMA, NEMA Premium
Rotation Reversible
Starting Method Direct On Line
