UN14T2BC, ACCU-TORQ VECTOR DUTY, 1/4Hp, 1765 RPM, 230/460V, 3PH, 60Hz, TENV, Frame 56C, FD87

 UN14T2BC, ACCU-TORQ VECTOR DUTY, 1/4Hp, 1765 RPM, 230/460V, 3PH, 60Hz, TENV, Frame 56C, FD87

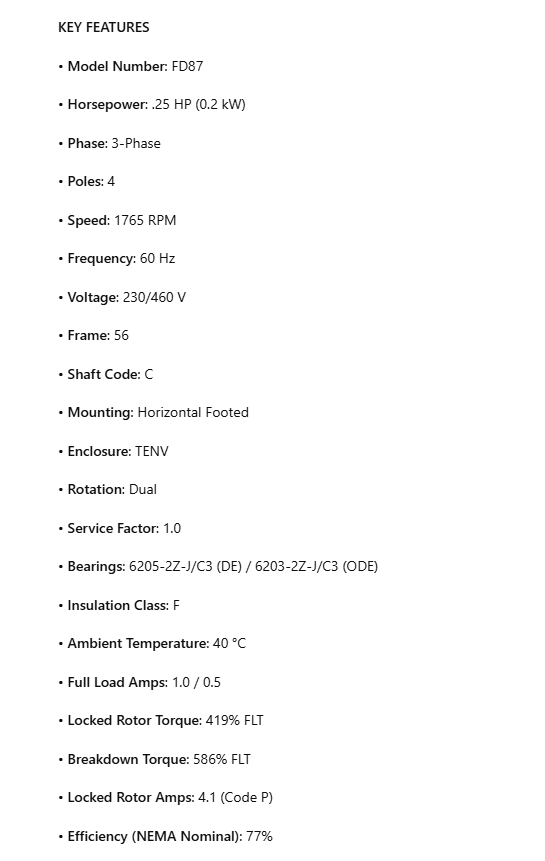

KEY FEATURES

• Model Number: FD87

• Horsepower: .25 HP (0.2 kW)

• Phase: 3-Phase

• Poles: 4

• Speed: 1765 RPM

• Frequency: 60 Hz

• Voltage: 230/460 V

• Frame: 56

• Shaft Code: C

• Mounting: Horizontal Footed

• Enclosure: TENV

• Rotation: Dual

• Service Factor: 1.0

• Bearings: 6205-2Z-J/C3 (DE) / 6203-2Z-J/C3 (ODE)

• Insulation Class: F

• Ambient Temperature: 40 °C

• Full Load Amps: 1.0 / 0.5

• Locked Rotor Torque: 419% FLT

• Breakdown Torque: 586% FLT

• Locked Rotor Amps: 4.1 (Code P)

• Efficiency (NEMA Nominal): 77%
