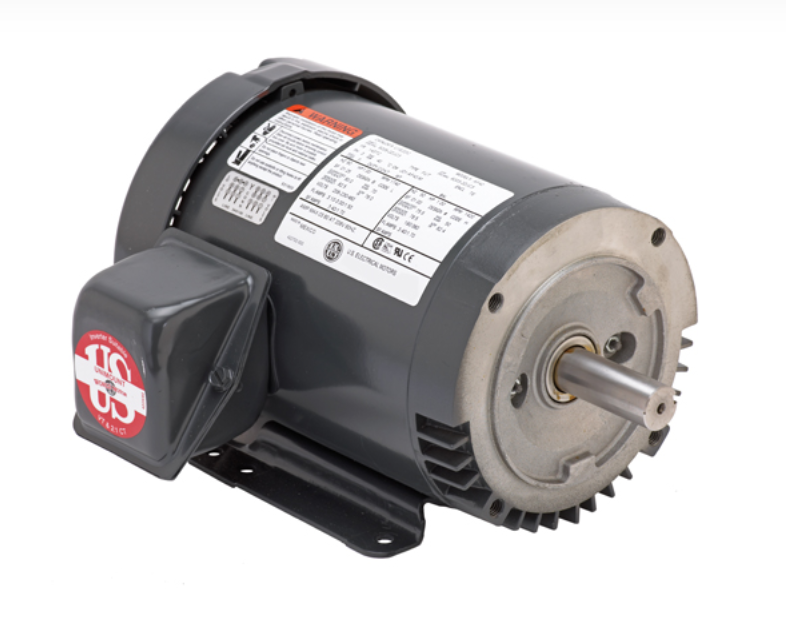

U1P2DFC, 1Hp, 1755 RPM, 208-230/460V, 3PH, 60-50Hz, TEFC, Frame 56C, FM70

U1P2DFC, 1Hp, 1755 RPM, 208-230/460V, 3PH, 60-50Hz, TEFC, Frame 56C, FM70

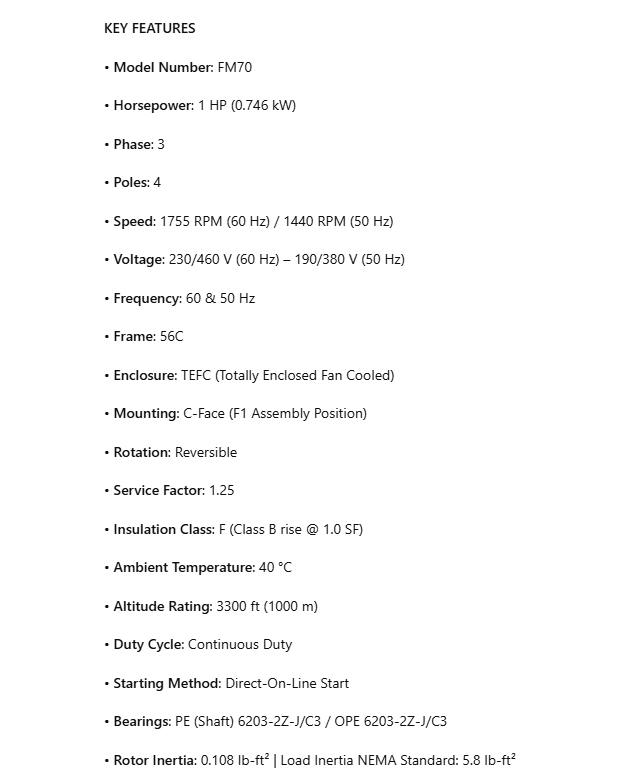

KEY FEATURES

• Model Number: FM70

• Horsepower: 1 HP (0.746 kW)

• Phase: 3

• Poles: 4

• Speed: 1755 RPM (60 Hz) / 1440 RPM (50 Hz)

• Voltage: 230/460 V (60 Hz) – 190/380 V (50 Hz)

• Frequency: 60 & 50 Hz

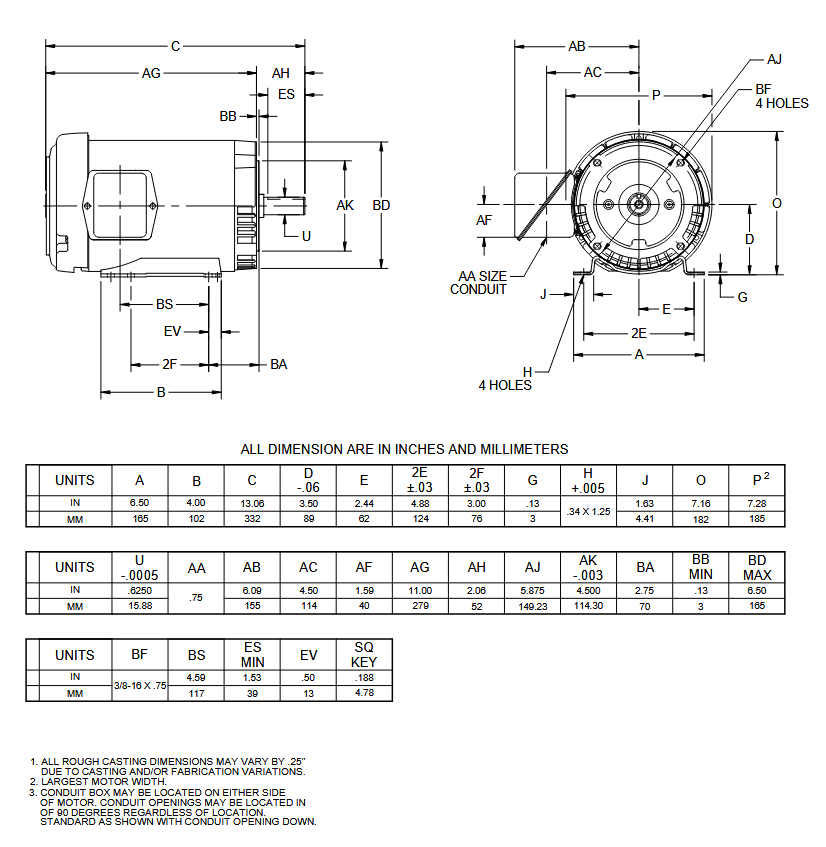

• Frame: 56C

• Enclosure: TEFC (Totally Enclosed Fan Cooled)

• Mounting: C-Face (F1 Assembly Position)

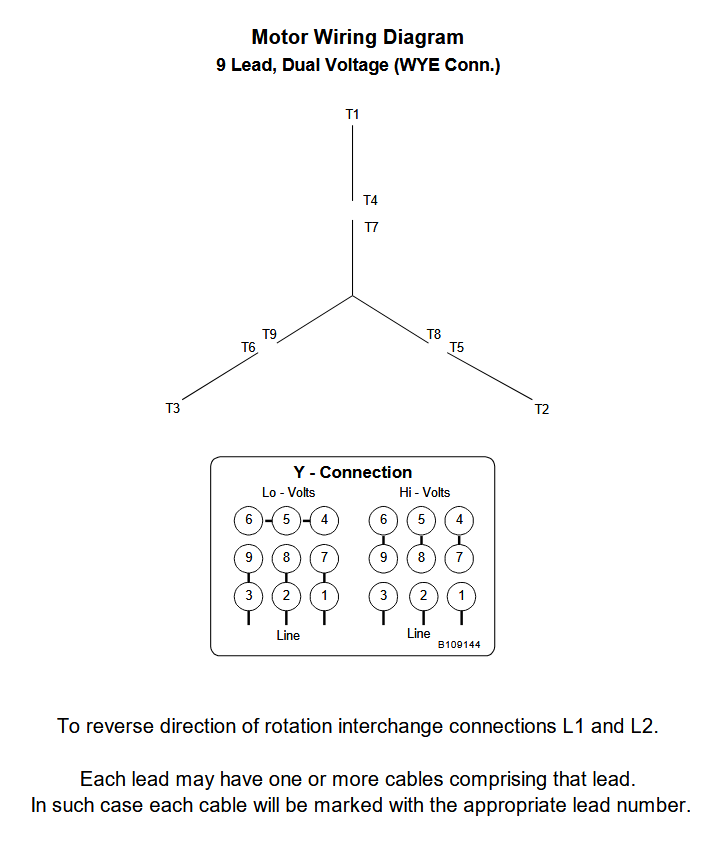

• Rotation: Reversible

• Service Factor: 1.25

• Insulation Class: F (Class B rise @ 1.0 SF)

• Ambient Temperature: 40 °C

• Altitude Rating: 3300 ft (1000 m)

• Duty Cycle: Continuous Duty

• Starting Method: Direct-On-Line Start

• Bearings: PE (Shaft) 6203-2Z-J/C3 / OPE 6203-2Z-J/C3

• Rotor Inertia: 0.108 lb-ft² | Load Inertia NEMA Standard: 5.8 lb-ft²
