U14P3GC, 1/4Hp, 1175 RPM, 575V, 3PH, 60Hz, TEFC, 56C, Steel Edge, NEMA Premium ,ROLLED STEEL RIGID BASE

U14P3GC, 1/4Hp, 1175 RPM,  575V, 3PH, 60Hz, TEFC, 56C, Steel Edge, NEMA Premium ,ROLLED STEEL RIGID BASE

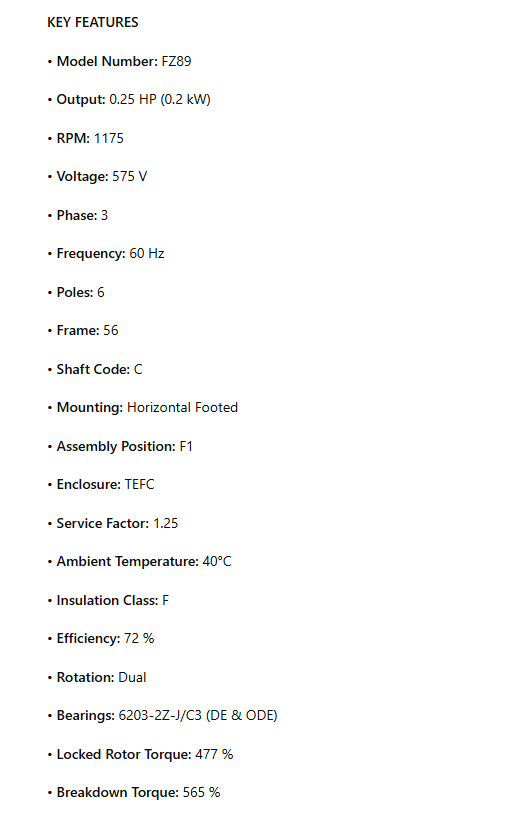

KEY FEATURES

• Model Number: FZ89

• Output: 0.25 HP (0.2 kW)

• RPM: 1175

• Voltage: 575 V

• Phase: 3

• Frequency: 60 Hz

• Poles: 6

• Frame: 56

• Shaft Code: C

• Mounting: Horizontal Footed

• Assembly Position: F1

• Enclosure: TEFC

• Service Factor: 1.25

• Ambient Temperature: 40°C

• Insulation Class: F

• Efficiency: 72 %

• Rotation: Dual

• Bearings: 6203-2Z-J/C3 (DE & ODE)

• Locked Rotor Torque: 477 %

• Breakdown Torque: 565 %
