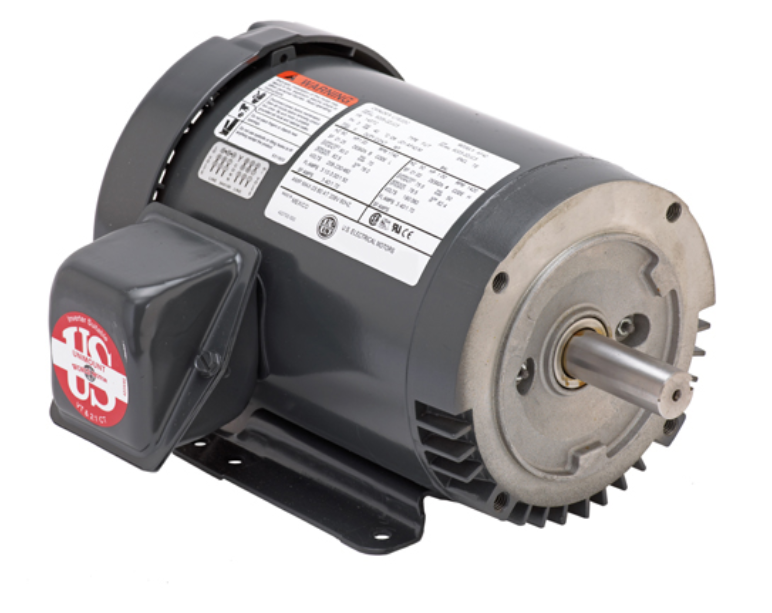

U13P2GC, 1/3Hp, 1800 RPM, 575V, 3PH, 60Hz, TEFC, 56C, Steel Edge, NEMA Premium ,ROLLED STEEL RIGID BASE

U13P2GC, 1/3Hp, 1800 RPM,  575V, 3PH, 60Hz, TEFC, 56C, Steel Edge, NEMA Premium ,ROLLED STEEL RIGID BASE

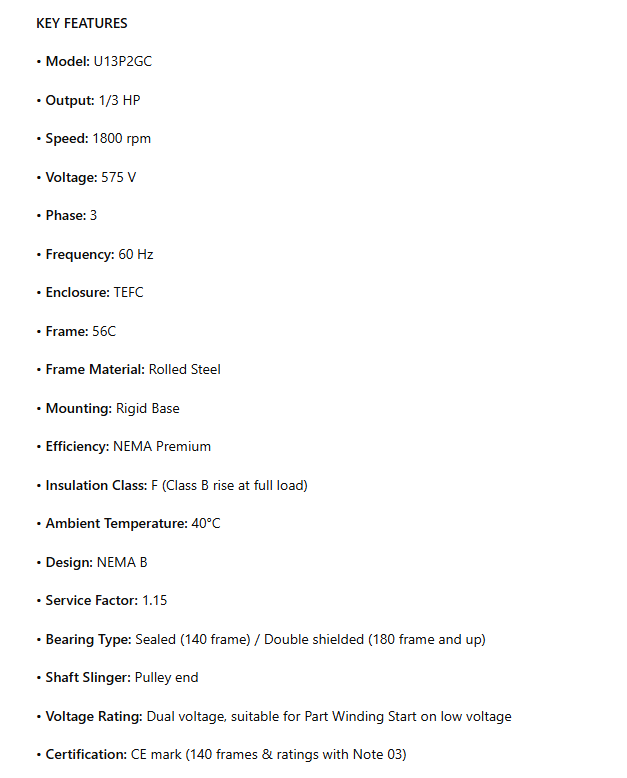

KEY FEATURES

• Model: U13P2GC

• Output: 1/3 HP

• Speed: 1800 rpm

• Voltage: 575 V

• Phase: 3

• Frequency: 60 Hz

• Enclosure: TEFC

• Frame: 56C

• Frame Material: Rolled Steel

• Mounting: Rigid Base

• Efficiency: NEMA Premium

• Insulation Class: F (Class B rise at full load)

• Ambient Temperature: 40°C

• Design: NEMA B

• Service Factor: 1.15

• Bearing Type: Sealed (140 frame) / Double shielded (180 frame and up)

• Shaft Slinger: Pulley end

• Voltage Rating: Dual voltage, suitable for Part Winding Start on low voltage

• Certification: CE mark (140 frames & ratings with Note 03)
