U12S2AC, 1/2Hp, 1745 RPM, 208-230/460V, 3PH, 60Hz, TEFC, Frame 56C, F008

U12S2AC, 1/2Hp, 1745 RPM, 208-230/460V, 3PH, 60Hz, TEFC, Frame 56C, F008

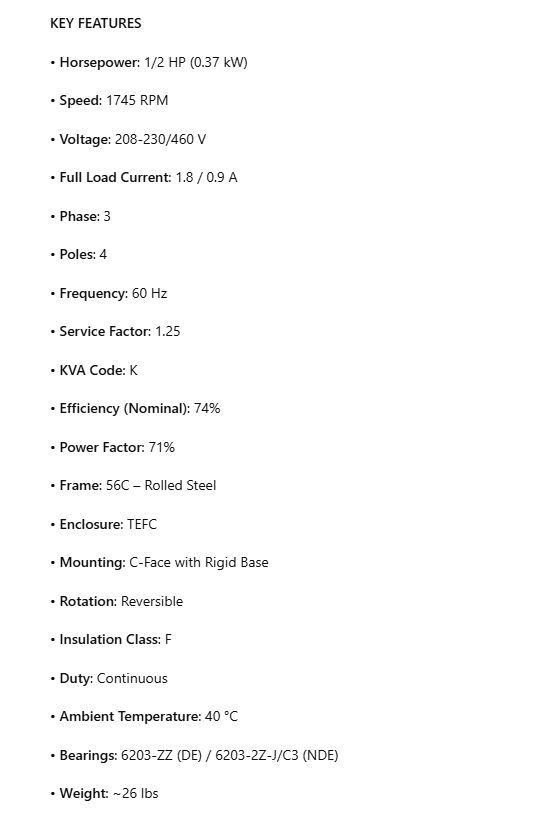

KEY FEATURES

• Horsepower: 1/2 HP (0.37 kW)

• Speed: 1745 RPM

• Voltage: 208-230/460 V

• Full Load Current: 1.8 / 0.9 A

• Phase: 3

• Poles: 4

• Frequency: 60 Hz

• Service Factor: 1.25

• KVA Code: K

• Efficiency (Nominal): 74%

• Power Factor: 71%

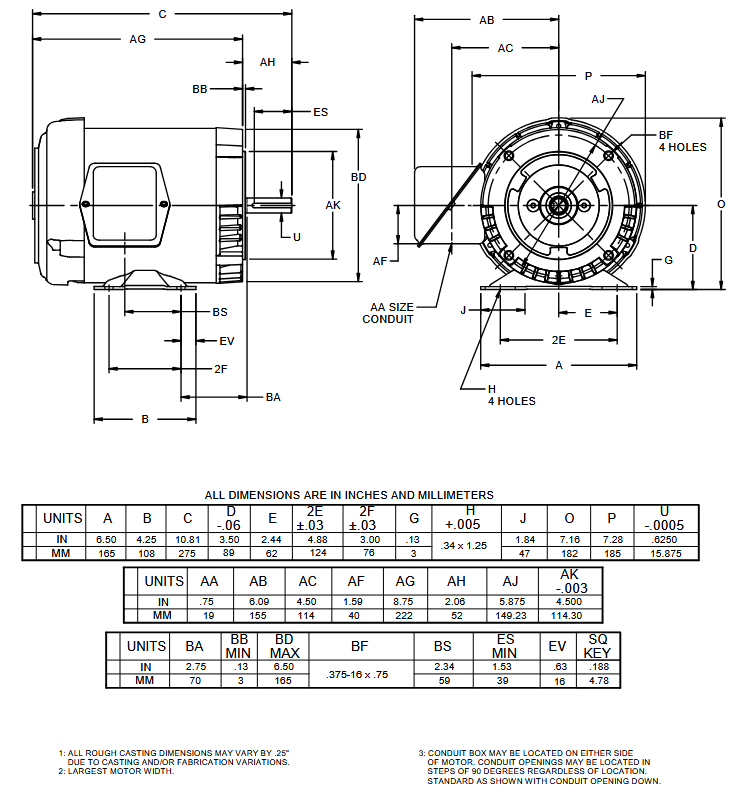

• Frame: 56C – Rolled Steel

• Enclosure: TEFC

• Mounting: C-Face with Rigid Base

• Rotation: Reversible

• Insulation Class: F

• Duty: Continuous

• Ambient Temperature: 40 °C

• Bearings: 6203-ZZ (DE) / 6203-2Z-J/C3 (NDE)

• Weight: ~26 lbs
