WEG  |  SKU: EMN-019229

TF000506W01DOE, Rolled Steel Premium Efficiency 1Hp 1145 Rpm 6P 56H 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted

$499.05
shipping

Estimate shipping

Description

TF000506W01DOE,  Rolled Steel Premium Efficiency 1Hp 1145 Rpm 6P 56H 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted

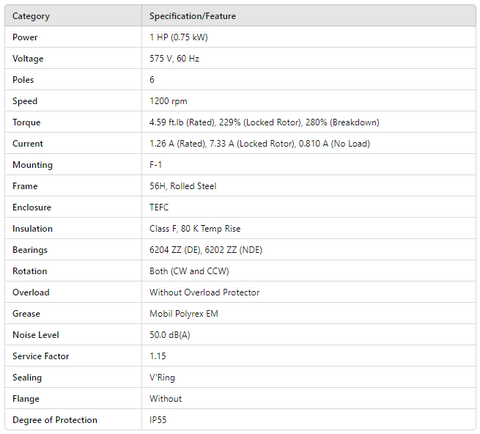

Category Specification/Feature
Power 1 HP (0.75 kW)
Voltage 575 V, 60 Hz
Poles 6
Speed 1200 rpm
Torque 4.59 ft.lb (Rated), 229% (Locked Rotor), 280% (Breakdown)
Current 1.26 A (Rated), 7.33 A (Locked Rotor), 0.810 A (No Load)
Mounting F-1
Frame 56H, Rolled Steel
Enclosure TEFC
Insulation Class F, 80 K Temp Rise
Bearings 6204 ZZ (DE), 6202 ZZ (NDE)
Rotation Both (CW and CCW)
Overload Without Overload Protector
Grease Mobil Polyrex EM
Noise Level 50.0 dB(A)
Service Factor 1.15
Sealing V'Ring
Flange Without
Degree of Protection IP55
