WEG  |  SKU: EMN-019225

TF000504W01DOE, Rolled Steel Premium Efficiency 1Hp 1765 Rpm 4P 56 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted

$390.86
shipping

Estimate shipping

Description

TF000504W01DOE,  Rolled Steel Premium Efficiency 1Hp 1765 Rpm 4P 56 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted

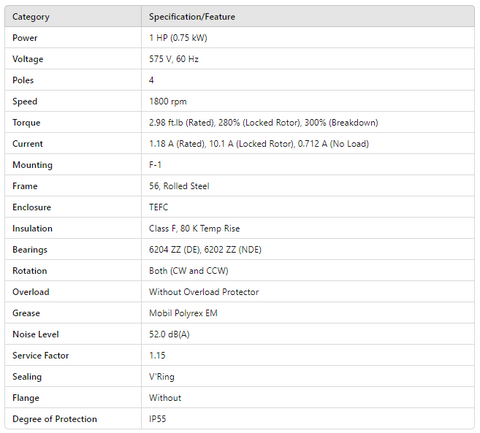

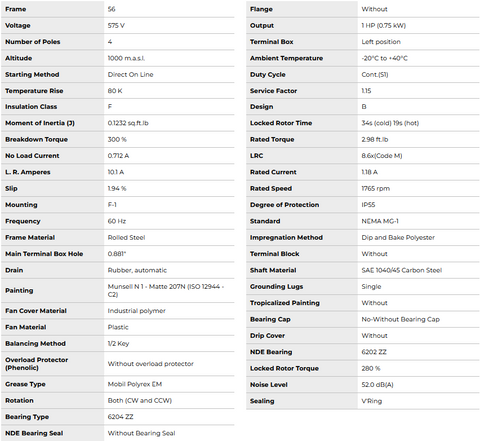

Category Specification/Feature
Power 1 HP (0.75 kW)
Voltage 575 V, 60 Hz
Poles 4
Speed 1800 rpm
Torque 2.98 ft.lb (Rated), 280% (Locked Rotor), 300% (Breakdown)
Current 1.18 A (Rated), 10.1 A (Locked Rotor), 0.712 A (No Load)
Mounting F-1
Frame 56, Rolled Steel
Enclosure TEFC
Insulation Class F, 80 K Temp Rise
Bearings 6204 ZZ (DE), 6202 ZZ (NDE)
Rotation Both (CW and CCW)
Overload Without Overload Protector
Grease Mobil Polyrex EM
Noise Level 52.0 dB(A)
Service Factor 1.15
Sealing V'Ring
Flange Without
Degree of Protection IP55
