WEG  |  SKU: EMN-019214

TF.50504W01DOE, Rolled Steel Premium Efficiency 0.5Hp 1730 Rpm 4P W56 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted

$306.33
shipping

Estimate shipping

Description

TF.50504W01DOE,  Rolled Steel Premium Efficiency 0.5Hp 1730 Rpm 4P W56 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted

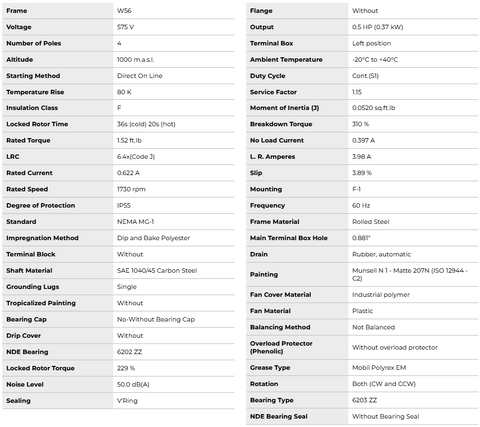

Category Specification/Feature
Power 0.5 HP (0.37 kW)
Voltage 575 V, 60 Hz
Poles 4
Speed 1800 rpm
Torque 1.52 ft.lb (Rated), 229% (Locked Rotor), 310% (Breakdown)
Current 0.622 A (Rated), 3.98 A (Locked Rotor), 0.397 A (No Load)
Mounting F-1
Frame W56, Rolled Steel
Enclosure TEFC
Insulation Class F, 80 K Temp Rise
Bearings 6203 ZZ (DE), 6202 ZZ (NDE)
Rotation Both (CW and CCW)
Overload Without Overload Protector
Grease Mobil Polyrex EM
Noise Level 50.0 dB(A)
Service Factor 1.15
Sealing V'Ring
Flange Without
Degree of Protection IP55
