1 5
WEG  |  SKU: EMN-019207

TF.33402W01DOE, Rolled Steel Premium Efficiency 0.33Hp 3450 Rpm 3450 Rpm 2P W56 3Ph 208-230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Foot-mounted

$296.18
shipping

Estimate shipping

Description

TF.33402W01DOE,  Rolled Steel Premium Efficiency 0.33Hp 3450 Rpm 3450 Rpm 2P W56 3Ph 208-230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Foot-mounted

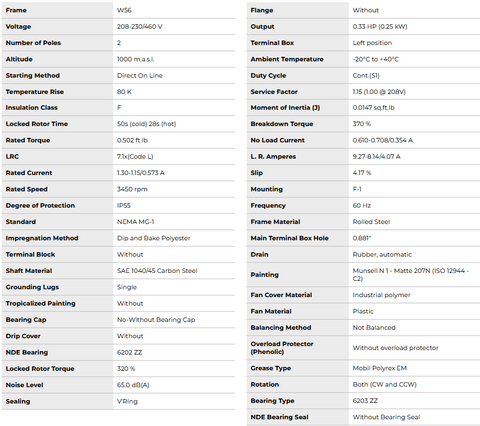

Category Specification/Feature
Power 0.33 HP (0.25 kW)
Voltage 208-230/460 V, 60 Hz
Poles 2
Speed 3600 rpm
Torque 0.502 ft.lb (Rated), 320% (Locked Rotor), 370% (Breakdown)
Current 1.30-1.15/0.573 A (Rated), 9.27-8.14/4.07 A (Locked Rotor)
Mounting F-1
Frame W56, Rolled Steel
Enclosure Without Fan Cover, Without Fan
Insulation Class F, 80 K Temp Rise
Bearings 6203 ZZ (DE), 6202 ZZ (NDE)
Rotation Both (CW and CCW)
Overload Without Overload Protector
Grease Mobil Polyrex EM
Noise Level 65.0 dB(A)
Service Factor 1.15 (1.00 @ 208V)
Sealing V'Ring
Flange Without
Degree of Protection IP55
