TECHTOP  |  SKU: EMN-019815

TD350-7R5G-6, TechTop AC Drives, 10Hp, 12.0A, 575V 3AC INPUT/575V 3AC OUTPUT, FRAME 3, IP20

$1,579.17
shipping

Estimate shipping

Description

TD350-7R5G-6, TechTop AC Drives, 10Hp, 12.0A, 575V 3AC INPUT/575V 3AC OUTPUT, FRAME 3, IP20

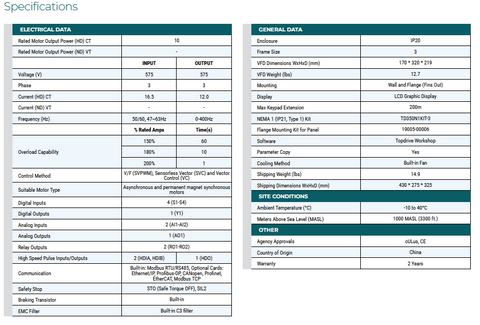

Electrical & Control Specifications
Property Specification
Motor Output (HD/CT) 10 HP
Input Voltage / Phase 575 V / 3-Phase
Output Voltage / Phase 575 V / 3-Phase
Input Frequency 50/60 Hz (47–63 Hz)
Output Frequency 0–400 Hz
Output Current (HD) 16.5 A
Overload Capacity 150% (60s), 180% (10s), 200% (1s)
Control Method V/F (SVPWM), Sensorless Vector (SVC), VC
Motor Types Asynchronous, Permanent Magnet Synchronous

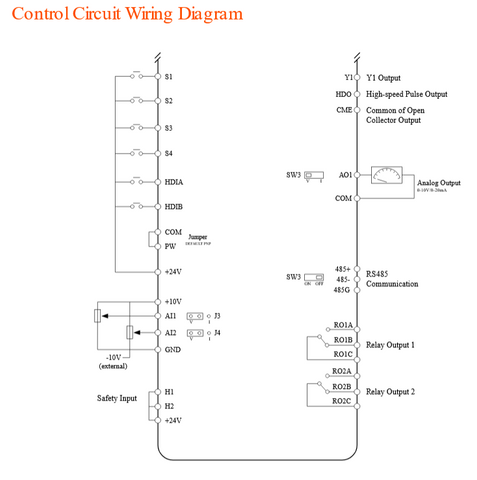

Digital I/O 4 DI (S1–S4), 1 DO (Y1)
Analog I/O 2 AI, 1 AO
Relay Outputs 2 (RO1–RO2)
High-Speed I/O 2 In (HDIA, HDIB), 1 Out (HDO)
Communication (Built-in) Modbus RTU / RS485
Optional Communication Ethernet/IP, Profibus-DP, CANopen, Profinet, EtherCAT, Modbus TCP
Safety STO (Safe Torque Off), SIL2
Braking Transistor Built-in

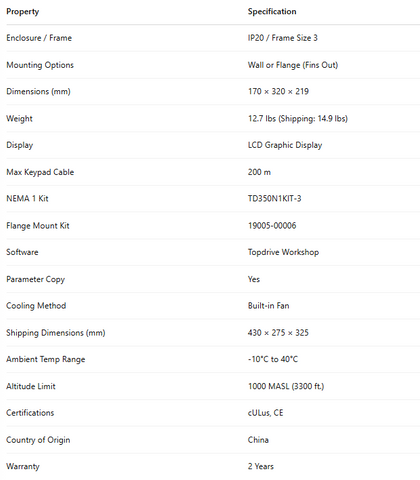

Mechanical, Environmental & General Specs
Property Specification
Enclosure / Frame IP20 / Frame Size 3
Mounting Options Wall or Flange (Fins Out)

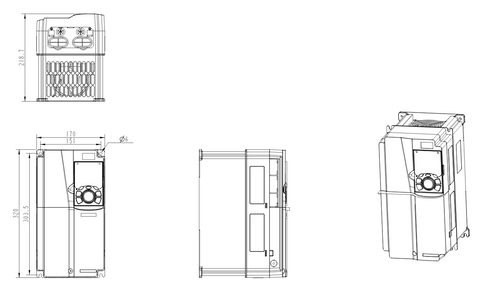

Dimensions (mm) 170 × 320 × 219
Weight 12.7 lbs (Shipping: 14.9 lbs)
Display LCD Graphic Display
Max Keypad Cable 200 m
NEMA 1 Kit TD350N1KIT-3
Flange Mount Kit 19005-00006
Software Topdrive Workshop
Parameter Copy Yes
Cooling Method Built-in Fan
Shipping Dimensions (mm) 430 × 275 × 325
Ambient Temp Range -10°C to 40°C
Altitude Limit 1000 MASL (3300 ft.)
Certifications cULus, CE
Country of Origin China
Warranty 2 Years

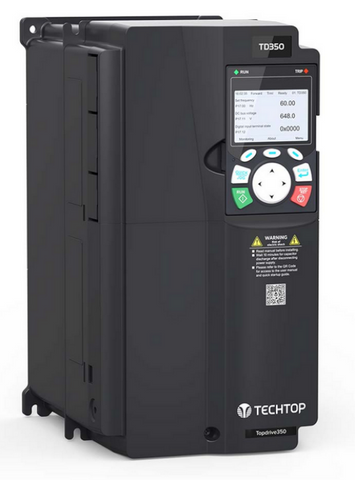

The Topdrive350 series is a high performance and high precision VFD compatible with asynchronous and permanent magnet synchronous motors.

The TD350 series provides wide voltage ranges and several different methods (MODBUS, PROFIBUS-DP, CANopen, and EtherNet/IP) to communicate with the VFD. The TD350 relies upon a 32-bit DSP and utilizes an advanced vector control algorithm to provide a high performance and high precision motor control.
