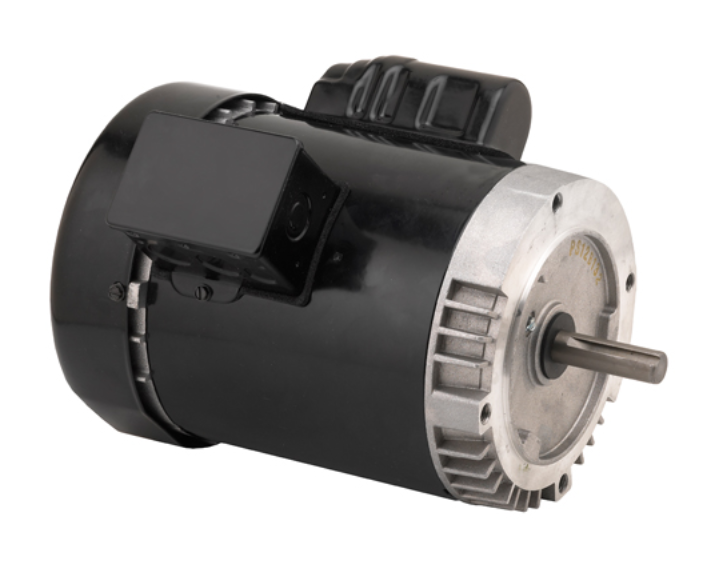

T1C3JCR, General Purpose Capacitor Start, 1Hp, 1140 RPM, 115/208-230V, 1PH, 60Hz, TEFC, Frame 56C, T063DED1681015B

T1C3JCR, General Purpose Capacitor Start, 1Hp, 1140 RPM, 115/208-230V, 1PH, 60Hz, TEFC, Frame 56C, T063DED1681015B

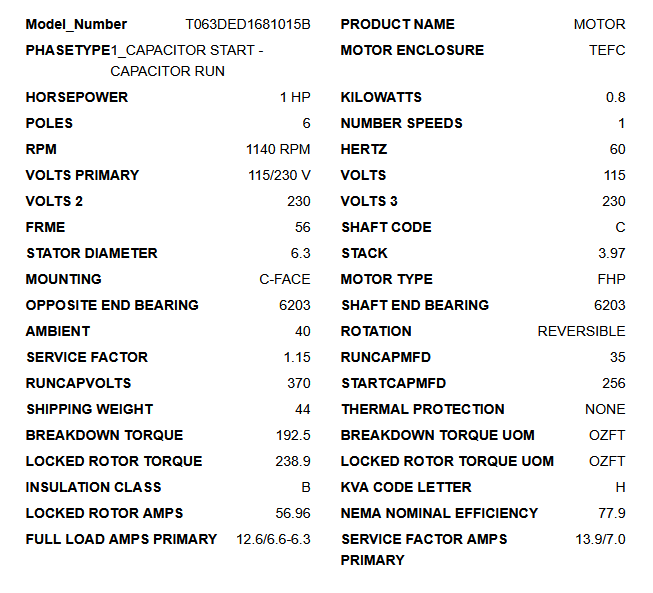

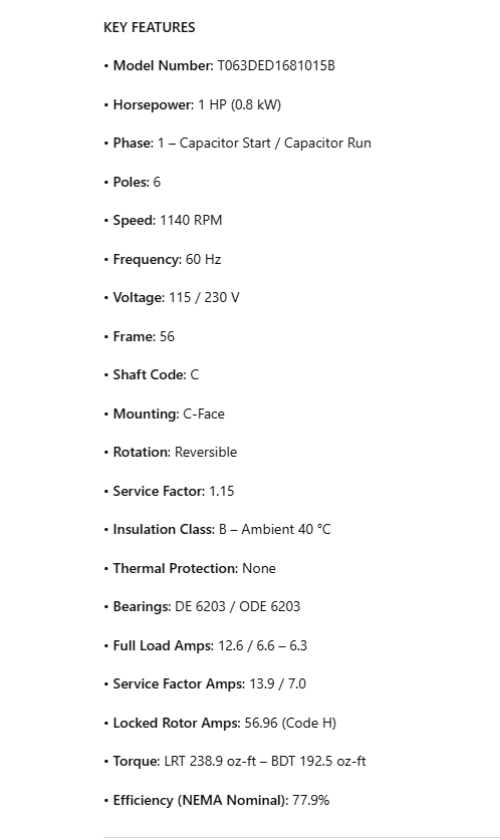

KEY FEATURES

• Model Number: T063DED1681015B

• Horsepower: 1 HP (0.8 kW)

• Phase: 1 – Capacitor Start / Capacitor Run

• Poles: 6

• Speed: 1140 RPM

• Frequency: 60 Hz

• Voltage: 115 / 230 V

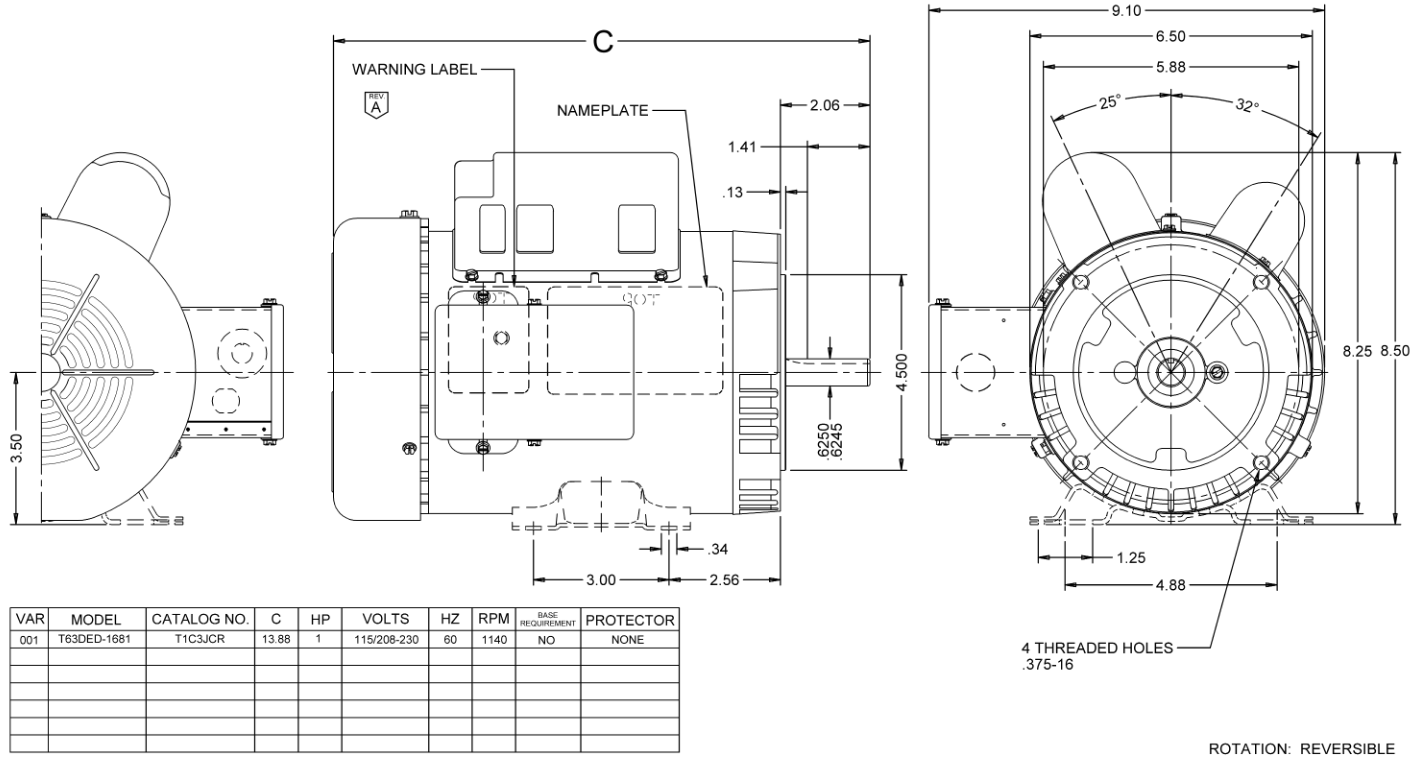

• Frame: 56

• Shaft Code: C

• Mounting: C-Face

• Rotation: Reversible

• Service Factor: 1.15

• Insulation Class: B – Ambient 40 °C

• Thermal Protection: None

• Bearings: DE 6203 / ODE 6203

• Full Load Amps: 12.6 / 6.6 – 6.3

• Service Factor Amps: 13.9 / 7.0

• Locked Rotor Amps: 56.96 (Code H)

• Torque: LRT 238.9 oz-ft – BDT 192.5 oz-ft

• Efficiency (NEMA Nominal): 77.9%
