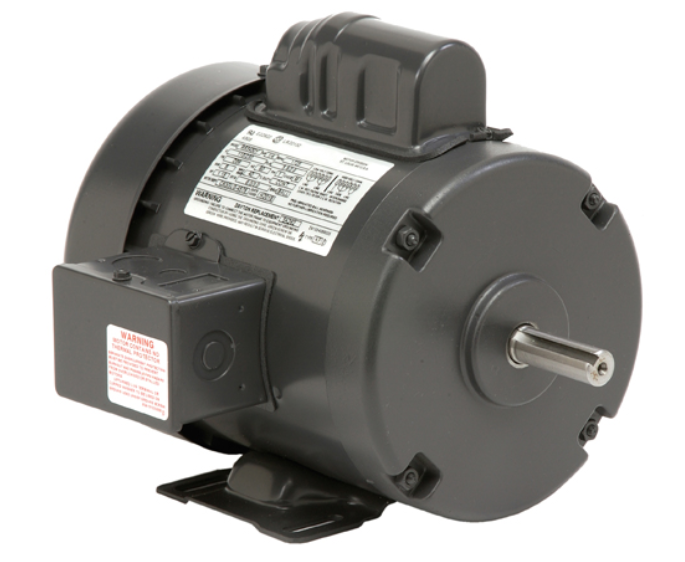

T13C3J, General Purpose, 1/3Hp, 1140 RPM, 115/208-230V, 1PH, 60Hz, TEFC, Fr. 56, C063JGT5367015B

T13C3J, General Purpose, 1/3Hp, 1140 RPM, 115/208-230V, 1PH, 60Hz, TEFC, Fr. 56, C063JGT5367015B

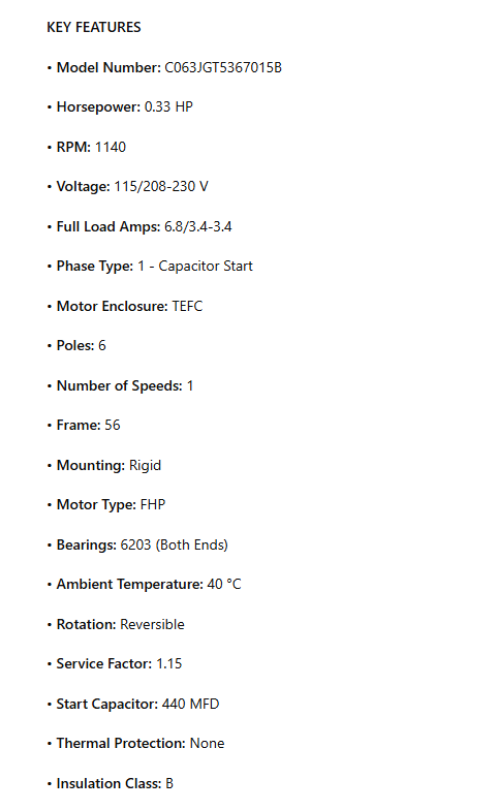

KEY FEATURES

• Model Number: C063JGT5367015B

• Horsepower: 0.33 HP

• RPM: 1140

• Voltage: 115/208-230 V

• Full Load Amps: 6.8/3.4-3.4

• Phase Type: 1 - Capacitor Start

• Motor Enclosure: TEFC

• Poles: 6

• Number of Speeds: 1

• Frame: 56

• Mounting: Rigid

• Motor Type: FHP

• Bearings: 6203 (Both Ends)

• Ambient Temperature: 40 °C

• Rotation: Reversible

• Service Factor: 1.15

• Start Capacitor: 440 MFD

• Thermal Protection: None

• Insulation Class: B
