T13C1J4, General Purpose, 1/3Hp, 3450 RPM, 115/208-230V, 1PH, 60Hz, TEFC, Fr. 48, C055KGR4925015B

T13C1J4, General Purpose, 1/3Hp, 3450 RPM, 115/208-230V, 1PH, 60Hz, TEFC, Fr. 48, C055KGR4925015B

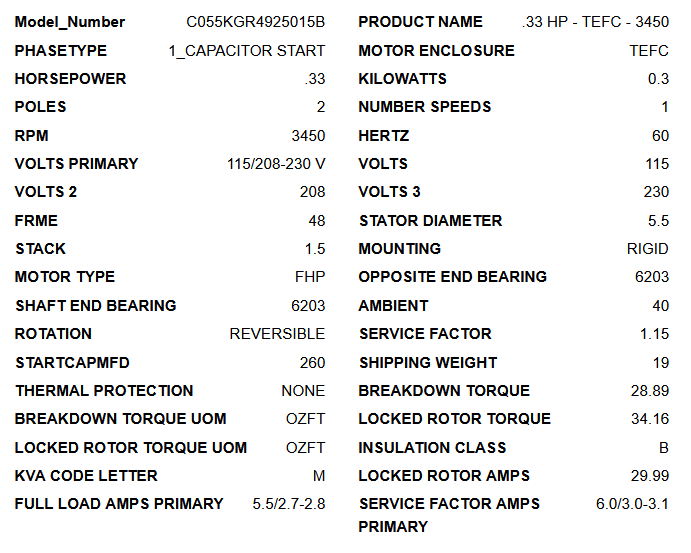

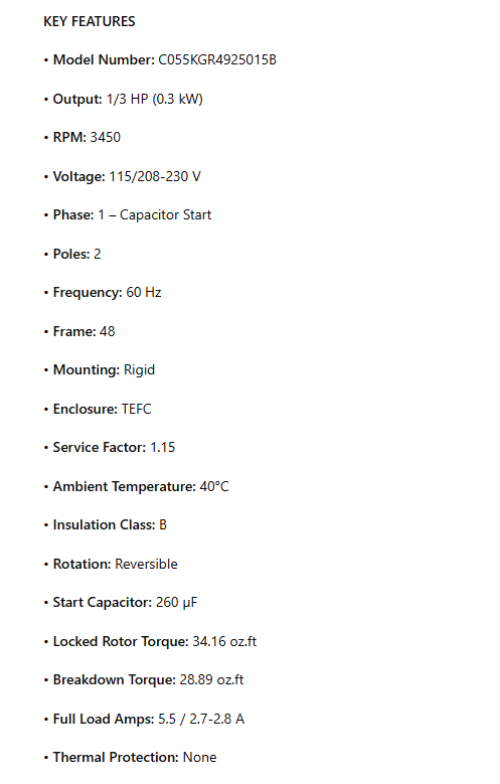

KEY FEATURES

• Model Number: C055KGR4925015B

• Output: 1/3 HP (0.3 kW)

• RPM: 3450

• Voltage: 115/208-230 V

• Phase: 1 – Capacitor Start

• Poles: 2

• Frequency: 60 Hz

• Frame: 48

• Mounting: Rigid

• Enclosure: TEFC

• Service Factor: 1.15

• Ambient Temperature: 40°C

• Insulation Class: B

• Rotation: Reversible

• Start Capacitor: 260 µF

• Locked Rotor Torque: 34.16 oz.ft

• Breakdown Torque: 28.89 oz.ft

• Full Load Amps: 5.5 / 2.7-2.8 A

• Thermal Protection: None
