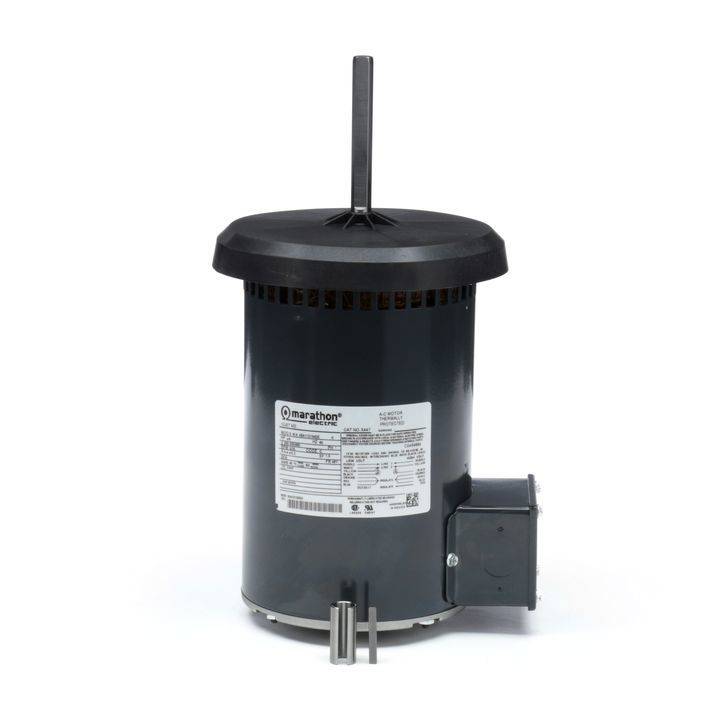

P198,Marathon,1.5 H.p,1075 Rpm,575V,1Ph,5KCP39UNB764T,Fr48Z,Odp,181574

P198, Marathon, 5KCP39UNB764T,

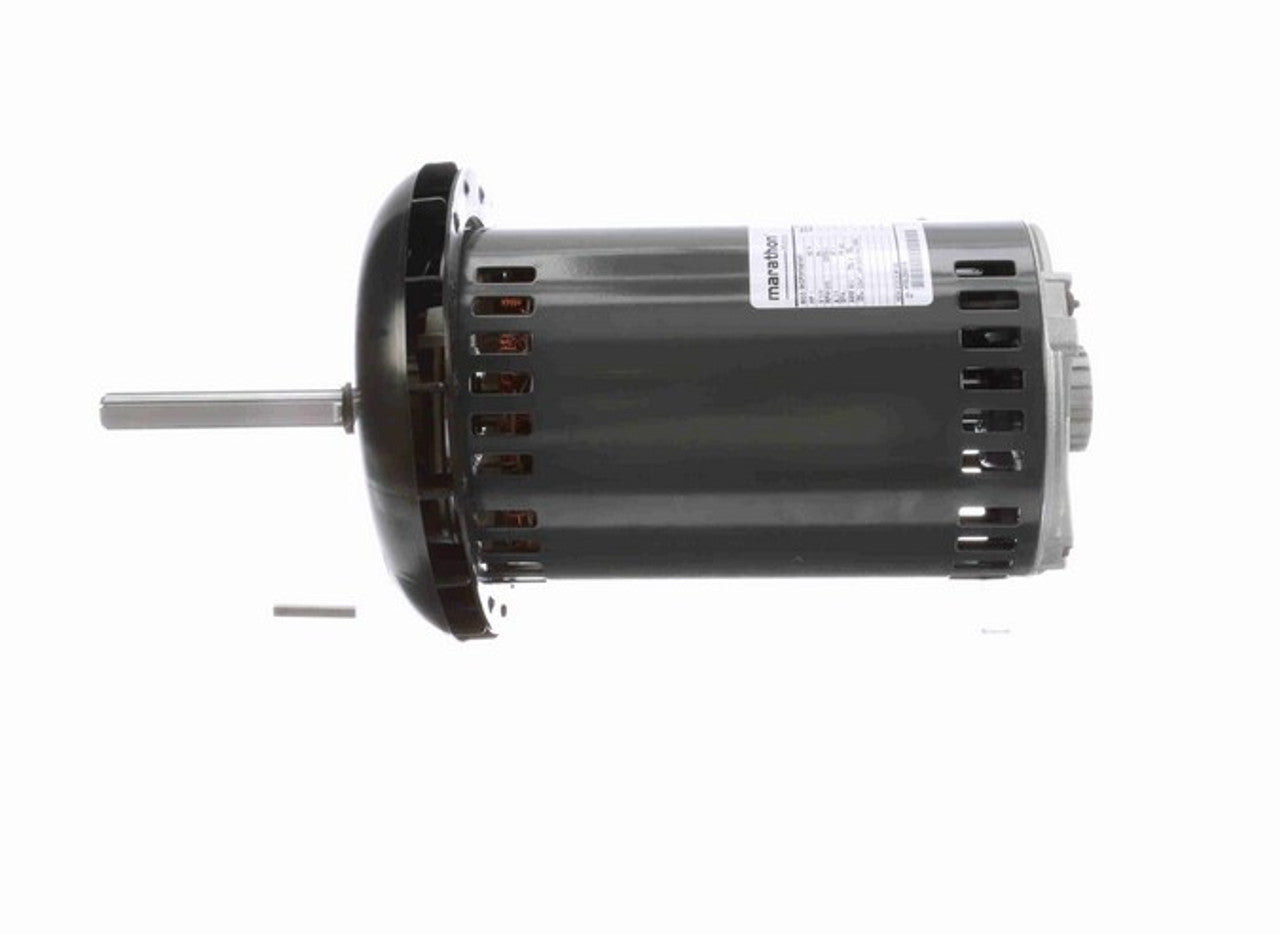

Obsolete replaced by model 181574 Century, Add Capacitor 25 UF 370V when you used the replacement and also add rain Shield Protection ,

• Automatic reset thermal protector prevents overheating.
• Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
• Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
• Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
• Vertical/horizontal mounting for proper placement of the fan within airflow.

Nameplate Specifications

Phase:	1	Output HP:	1.50 Hp
Output KW:	1.1 kW	Voltage:	575 V
Speed:	1075 rpm	Service Factor:	1
Frame:	48Z	Enclosure:	Open Enclosed
Thermal Protection:	Automatic	Efficiency:	65 %
Ambient Temperature:	60 °C	Frequency:	60 Hz
Current:	3.5 A	Power Factor:	0
Duty:	Continuous	Insulation Class:	F
KVA Code:	A	Drive End Bearing Size:	6203
Opp Drive End Bearing Size:	6203	UL:	Recognized
CSA:	Yes	CE:	N
Number of Speeds:	1

Technical Specifications

Electrical Type:	Permanent Split Capacitor(PSC)	Starting Method:	N/R
Poles:	6	Rotation:	Counterclockwise/Clockwise
Mounting:	Round	Motor Orientation:	ANY
Drive End Bearing:	BALL	Opp Drive End Bearing:	Ball
Frame Material:	Rolled Steel	Overall Length:	15.5 in
Frame Length:	8.5 in	Shaft Diameter:	0.630 in
Shaft Extension:	5.26 in

General Specifications

UPC:	722856038098	Weight:	23.00 LB
Packaged Length:	19.19 IN	Packaged Width:	10.94 IN
Packaged Height:	9.5 IN	HTC:	8501.40.6040
Country Of origin:	Mexico
