DELTA ELECTRONICS | SKU:
EMN-018905

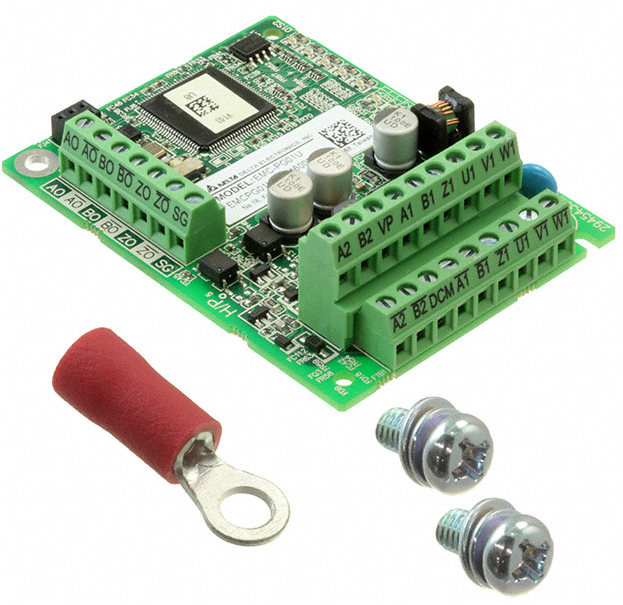

P-EMC-PG01U, Encod.Card 5VDC 5VDC/50MA P/OP
Regular price
$640.72
Unit price
/
Unavailable
P-EMC-PG01U, Encod.Card 5VDC 5VDC/50MA P/OP is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
P-EMC-PG01U, Encod.Card 5VDC 5VDC/50MA P/OP
Regular price
$640.72
Unit price
/
Unavailable
Description
Description
P-EMC-PG01U, Encod.Card 5VDC 5VDC/50MA P/OP

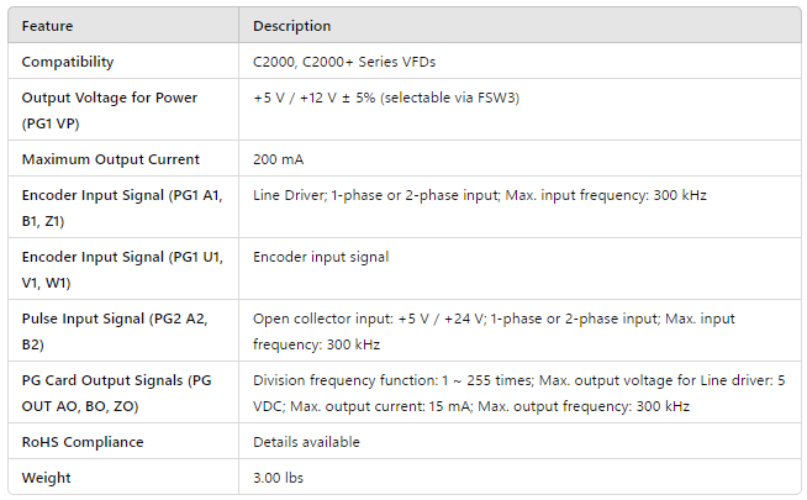

| Feature | Description |
| Compatibility | C2000, C2000+ Series VFDs |
| Output Voltage for Power (PG1 VP) | 5 V / +12 V ± 5% (selectable via FSW3) |
| Maximum Output Current | 200 mA |
| Encoder Input Signal (PG1 A1, B1, Z1) | Line Driver; 1-phase or 2-phase input; Max. input frequency: 300 kHz |
| Encoder Input Signal (PG1 U1, V1, W1) | Encoder input signal |
| Pulse Input Signal (PG2 A2, B2) | Open collector input: +5 V / +24 V; 1-phase or 2-phase input; Max. input frequency: 300 kHz |
| PG Card Output Signals (PG OUT AO, BO, ZO) | Division frequency function: 1 ~ 255 times; Max. output voltage for Line driver: 5 VDC; Max. output current: 15 mA; Max. output frequency: 300 kHz |
| RoHS Compliance | Details available |
| Weight | 3.00 lbs |
