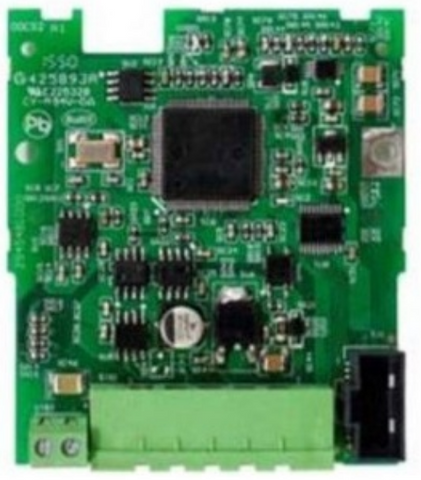

P-CMM-DN01, VFD-MH/MS300, DeviceNet Communication Card

E-Motor Nations

$366.40

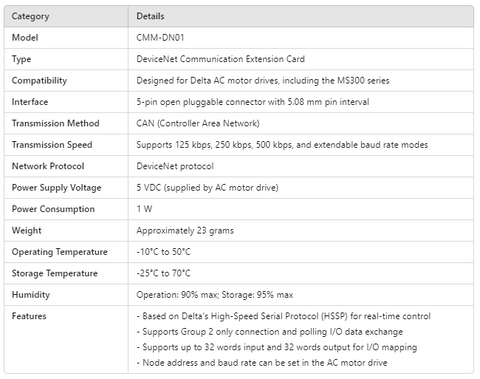

Category	Details
Model	CMM-DN01
Type	DeviceNet Communication Extension Card
Compatibility	Designed for Delta AC motor drives, including the MS300 series
Interface	5-pin open pluggable connector with 5.08 mm pin interval
Transmission Method	CAN (Controller Area Network)
Transmission Speed	Supports 125 kbps, 250 kbps, 500 kbps, and extendable baud rate modes
Network Protocol	DeviceNet protocol
Power Supply Voltage	5 VDC (supplied by AC motor drive)
Power Consumption	1 W
Weight	Approximately 23 grams
Operating Temperature	-10°C to 50°C
Storage Temperature	-25°C to 70°C
Humidity	Operation: 90% max; Storage: 95% max
Features	- Based on Delta's High-Speed Serial Protocol (HSSP) for real-time control - Supports Group 2 only connection and polling I/O data exchange - Supports up to 32 words input and 32 words output for I/O mapping - Node address and baud rate can be set in the AC motor drive
