1 5
WEG  |  SKU: EMN-018975

OF002102W01DOE, Rolled Steel 2Hp 3500 Rpm 2P 56H 1Ph 115/208-230 V 60 Hz IC01 - ODP - Foot-mounted

$500.74
shipping

Estimate shipping

Description

OF002102W01DOE,  Rolled Steel 2Hp 3500 Rpm 2P 56H 1Ph 115/208-230 V 60 Hz IC01 - ODP - Foot-mounted

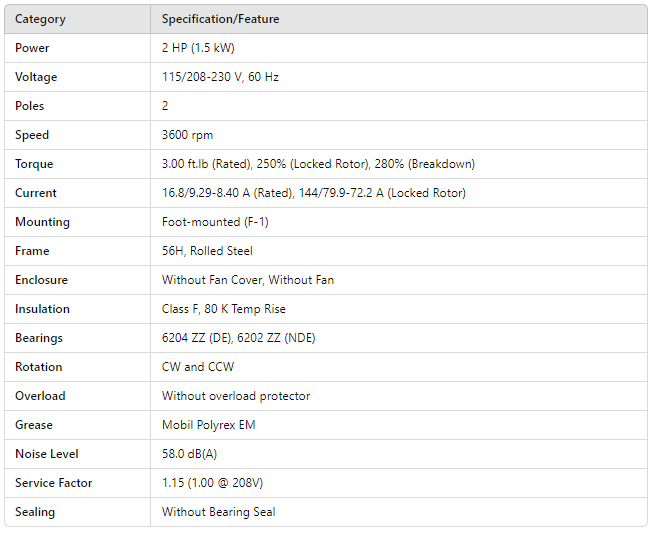

Category Specification/Feature
Power 2 HP (1.5 kW)
Voltage 115/208-230 V, 60 Hz
Poles 2
Speed 3600 rpm
Torque 3.00 ft.lb (Rated), 250% (Locked Rotor), 280% (Breakdown)
Current 16.8/9.29-8.40 A (Rated), 144/79.9-72.2 A (Locked Rotor)
Mounting Foot-mounted (F-1)
Frame 56H, Rolled Steel
Enclosure Without Fan Cover, Without Fan
Insulation Class F, 80 K Temp Rise
Bearings 6204 ZZ (DE), 6202 ZZ (NDE)
Rotation CW and CCW
Overload Without overload protector
Grease Mobil Polyrex EM
Noise Level 58.0 dB(A)
Service Factor 1.15 (1.00 @ 208V)
