WEG  |  SKU: EMN-018973

OF001102W01DOE, Rolled Steel 1.5Hp 3500 Rpm 2P 56 1Ph 115/208-230 V 60 Hz IC01 - ODP - Foot-mounted

$422.98
shipping

Estimate shipping

Description

OF001102W01DOE,  Rolled Steel 1.5Hp 3500 Rpm 2P 56 1Ph 115/208-230 V 60 Hz IC01 - ODP - Foot-mounted

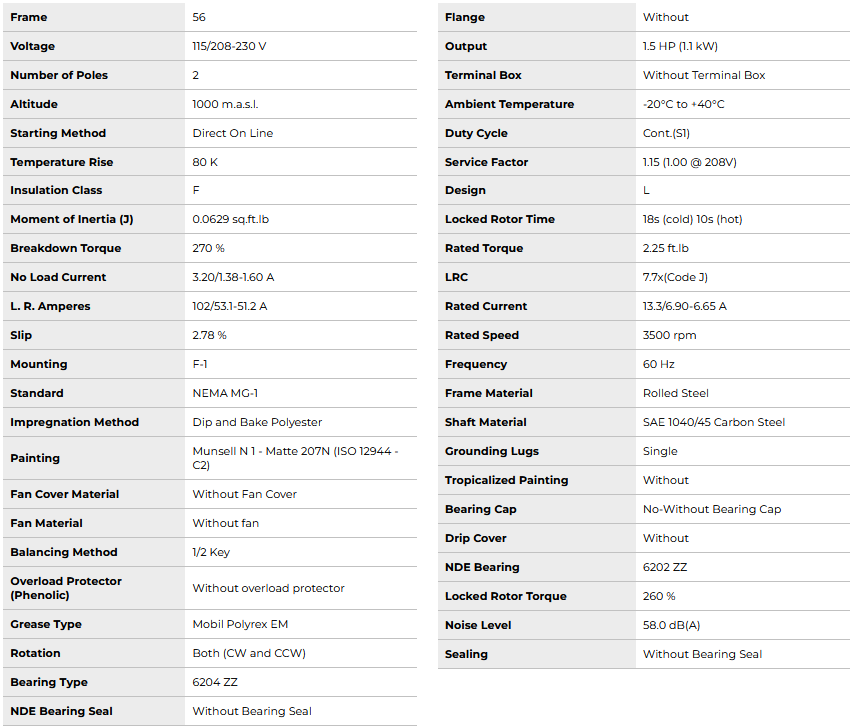

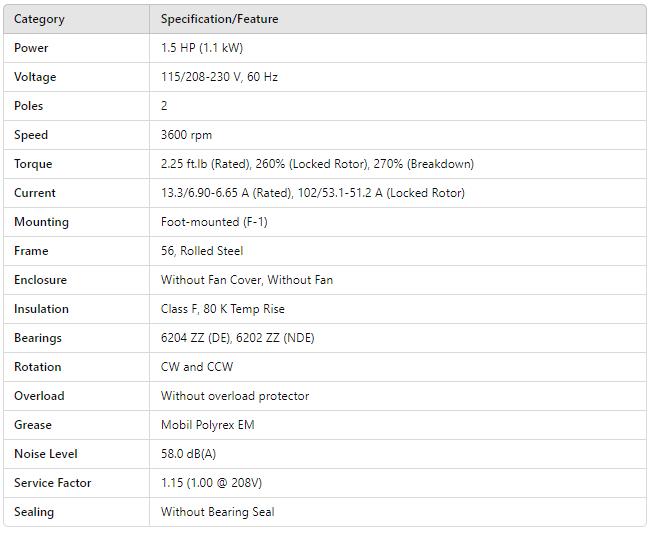

Category Specification/Feature
Power 1.5 HP (1.1 kW)
Voltage 115/208-230 V, 60 Hz
Poles 2
Speed 3600 rpm
Torque 2.25 ft.lb (Rated), 260% (Locked Rotor), 270% (Breakdown)
Current 13.3/6.90-6.65 A (Rated), 102/53.1-51.2 A (Locked Rotor)
Mounting Foot-mounted (F-1)
Frame 56, Rolled Steel
Enclosure Without Fan Cover, Without Fan
Insulation Class F, 80 K Temp Rise
Bearings 6204 ZZ (DE), 6202 ZZ (NDE)
Rotation CW and CCW
Overload Without overload protector
Grease Mobil Polyrex EM
Noise Level 58.0 dB(A)
Service Factor 1.15 (1.00 @ 208V)
Sealing Without Bearing Seal
